Belt Dimension: Length: 1930±50mm, Width: 140±5mm
Speed: 90±8 cycles/min
Big Wheel Diameter: 225±5mm
Small Wheel Diameter: 60±0.5mm, 90±0.5mm, 120±0.5mm
Capacity: Max 6 sole
Counter: Touch Screen, 0-999,999
Dimension(W×D×H): 1450×600×600mm
Weight: 170kg
Power Supply: AC220V±10%, 50Hz/60Hz
Product Description:

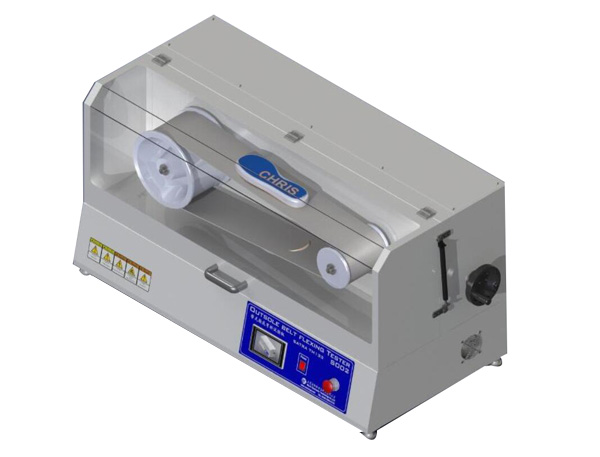

The Belt Flexing Tester proves one of the best indications of cracking of shoe sole due to flexing in wear. The sole forepart is attached to an endless belt which passes around two pulleys, the large one provides the rotation whilst the same one determines the severity of the flexing action. It is supplied with three small pulleys of diameters to increase or decrease the amount of flexing.
Test Standards: SATRA TM133, ISO 16177
