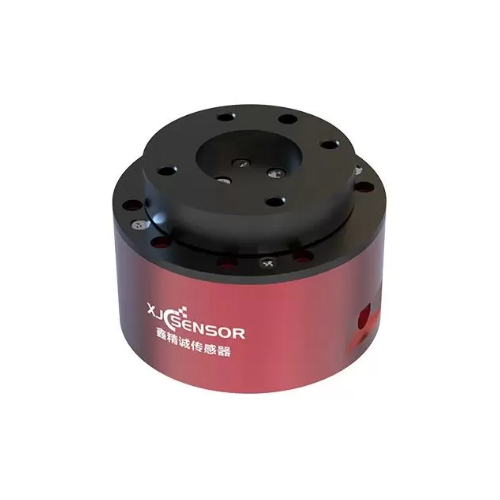

XJCSENSOR X-3A-D90-H27 3축 힘/토크 센서 (10N)

Capacity: 10N

Non-linearity: ≤0.5%F.S.

Repeatability: ≤0.05%F.S.

Zero balance: ±5%F.S.

Operating temp range: -20~80°C

Compensated temp range: -10~40°C

Insulation: ≥2000MΩ/100VDC

Recommended excitation voltage: 12-30 VDC

Safe load limit: 300%F.S.

Temp effect on output: ≤±0.05%F.S./10°C

Temp effect on zero: ≤±0.05%F.S./10°C

Long-term crosstalk error: ≤1%F.S.

Protection class: IP65

Cable size: φ2*1m
