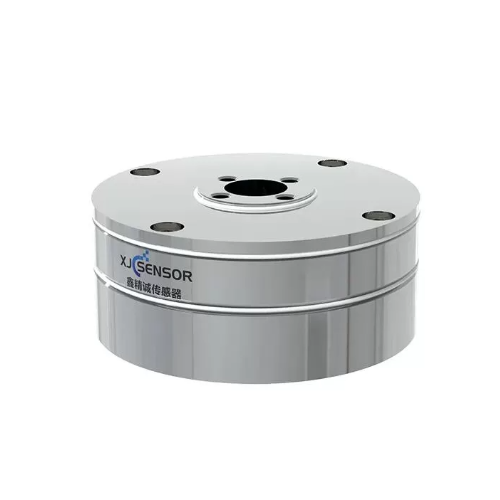

XJCSENSOR X-6A-D62-H27-A 6축 힘/토크 센서 (100N~1000N)

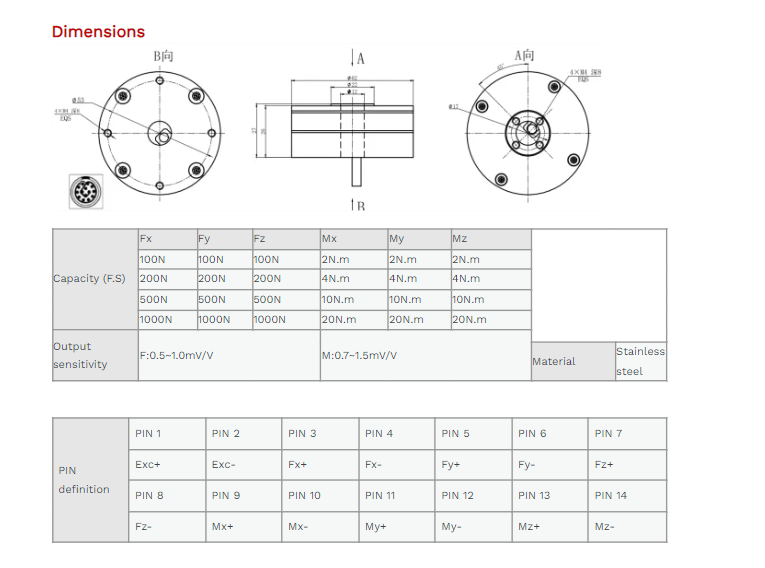

Capacity: 100N~1000N

Non-linearity: ≤0.5%F.S.

Repeatability: ≤±0.05%F.S.

Zero balance: ±5%F.S.

Operating temp range: -20~80°C

Compensated temp range: -10~40°C

Insulation: ≥2000MΩ/50VDC

Recommended excitation voltage: 5VDC

Safe load limit: 300%F.S.

Temp effect on output: ≤0.2%F.S./10°C

Temp effect on zero: ≤0.2%F.S./10°C

Long-term crosstalk error: ≤3%F.S.

Protection class: IP66

Cable size: φ4.5*3m+Lemo14 PIN plug (Option)
