Sampling Frequency: 400MHz
Minimum Resolution: 0.5m (100m/us)
Low Voltage Pulse Width: 0.2uS
Test Blind Zone: ≤20m
Ranging Range: ≤60km
Measurement Error: ≤±(0.5%×L+1m), L is the cable length
There Are Three Test Cable Lengths: <1km (short distance); <3km (medium distance); >3km (long distance), (low-voltage pulse test amplitude: 400Vpp)
Pulse Coupler Withstand Voltage: DC 38kV
Working Conditions: Temperature -25℃～+65℃, relative humidity 85%, atmospheric pressure 750±30mmHg

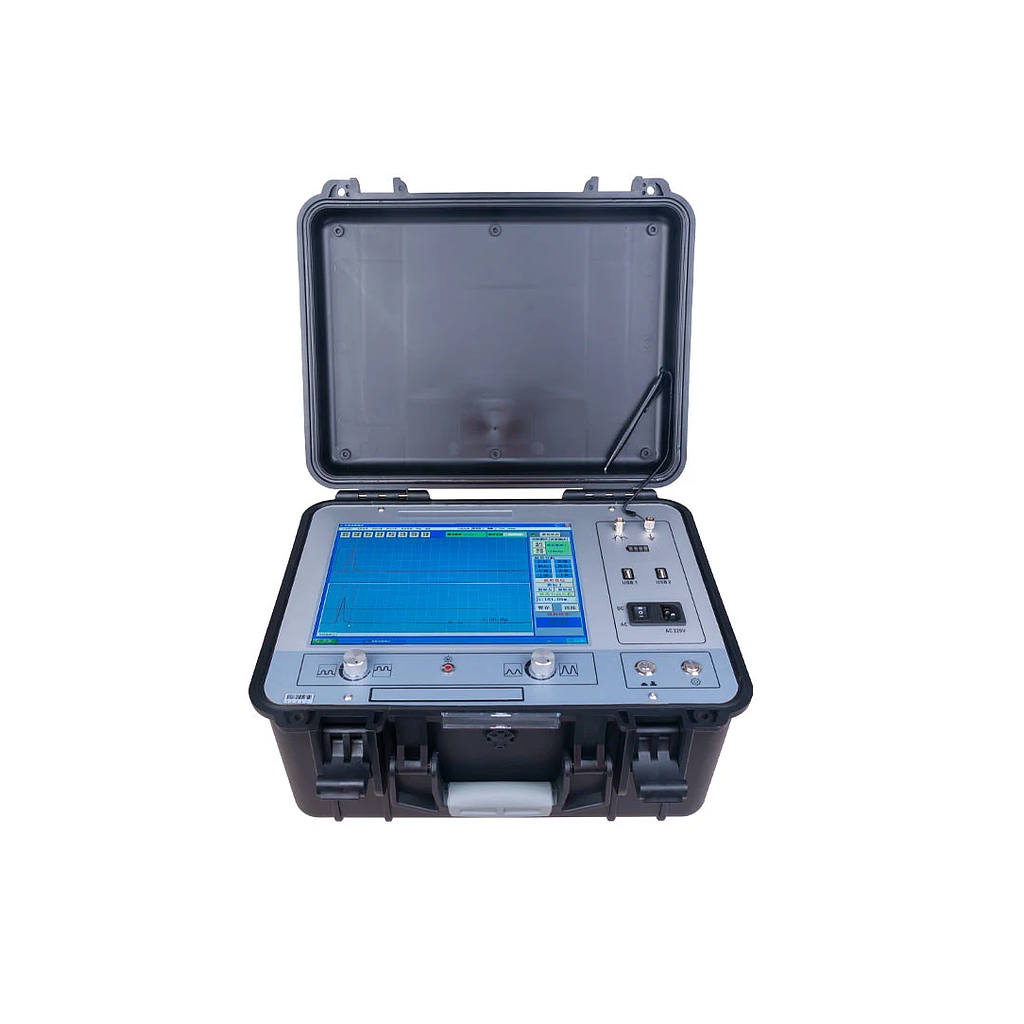

Volume And Weight: Cable fault tester 430×380×220mm-10kg; Pulse coupler 430×380×220mm-10kg
