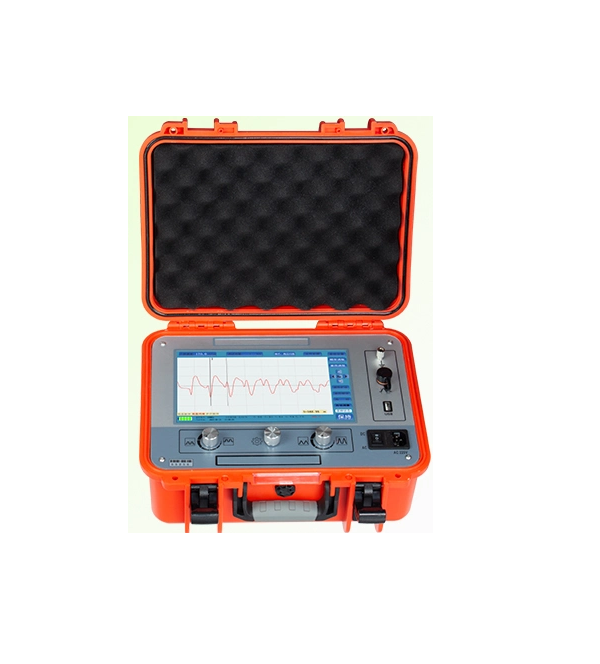

XZH Test XHGG502A2 Industrial Cable Fault Locator TDR (80MHz)

Sampling frequency: 80MHz

Low voltage pulse amplitude: 100V±15%

Ranging range: ≥65km

Test range: 300m/1km/5km/25km/65km

Pulse width: 0.125μs/0.50μs/2.50μs/7.25μs/10.0μs

Minimum resolution: 0.1m

Test blind area: ≤20m

Measurement error: ≤(0.5%×L+1m), L is the cable length

Power supply mode: charging AC110V~240V, 50Hz/60Hz

Volume and weight: L358mm×W284mm×H168mm – 4.7kg

Working conditions: Temperature -20°C~+65°C, relative humidity ≤90%, atmospheric pressure 750±30mmHg
