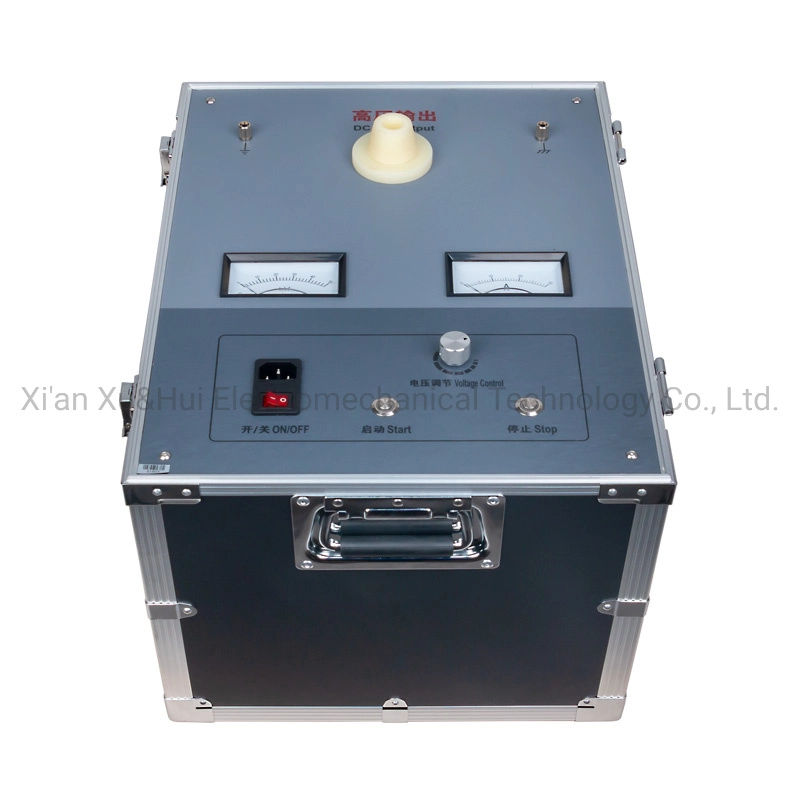

XZH Test XHHV508-2 DC High Voltage Power Supply (200W)

Output High Voltage: 0-30/35/40KV (selectable)

Output Power: 200W

External Capacitors: 1~2/4/8/16μF

Short Circuit Current: 0-170/250/340/430mA (customizable)

Voltage Accuracy: 1.5%

Operating Temperature: -20°C to +50°C

Pulse Duration: 1-8 seconds

Over-temperature Protection: 85°C cutoff

Dimensions (≤400W): 400mm (L) × 310mm (W) × 320mm (H)
