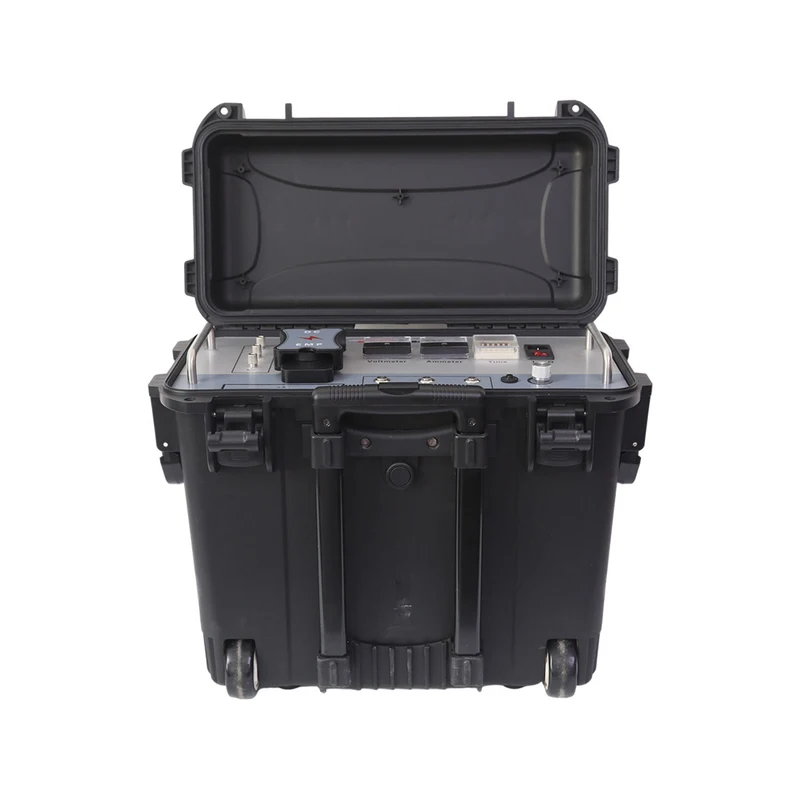

XZH Test XHHV515-8L Low Voltage Cable Fault Detection Portable Impulse Surge Generator (15kV)

Impact high voltage: 0~15kV

High voltage partial pressure: 2.5 level

Built-in capacitor: 8μF

Discharge power: 0~900J

Output voltage polarity: negative polarity

Impact power: 400W

Working mode: Selectable or adjustable impulse rate and single shot

Minimum output current in DC mode: 16mA at 15kV

Length of test cables: The high-voltage output line of the pull-rod type high-voltage pulse generator is 2 meters long, the ground line is 3 meters long, and the power line is 1.8 meters long.

Over temperature protection: 65°C

Over current protection: 8mA (more than 3 seconds)

Volume (mm): 540L×300W×450H

Weight: not more than 25kg

Power supply: AC220V±15%, 50Hz±2Hz (60Hz)

Ambient temperature: -20℃~+60℃
