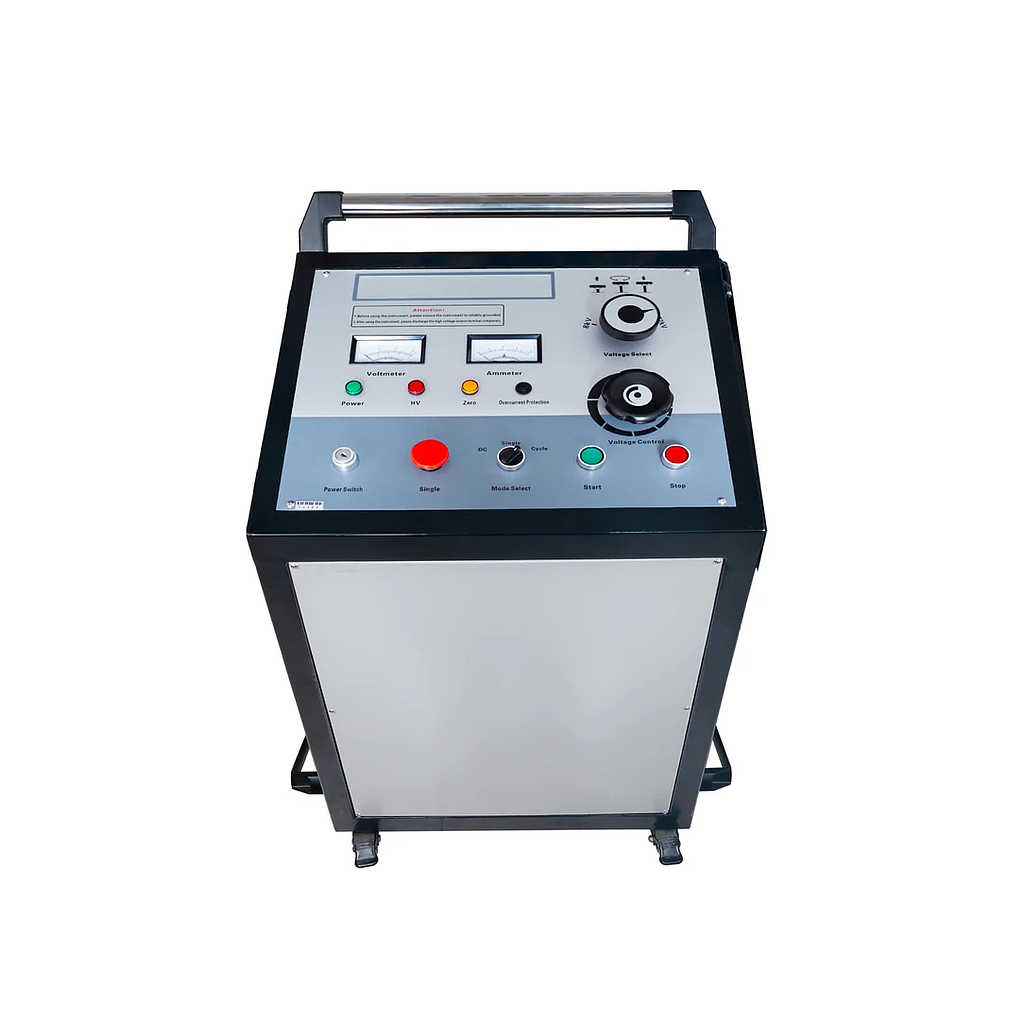

XZH Test XHHV535-4TS High voltage pulse generator with DC/Single/Cycle discharge mode (0–32kV)

Impulse voltage: 0–32kV, 0–16kV, 0–8kV (Adjustable)

High voltage partial pressure: 2.5 level

Built-in capacitor: 4μF/32kV, 16μF/16kV, 64μF/8kV

Adjustable three-speed adjustment

Discharge power: 2048J @each voltage level

Impact time: about 7 seconds for automatic impact, arbitrary control time for manual impact

Surge power: 2KVA

Burn current: 60mA at 32kV, when voltage go down, the current increase large

Working power supply: AC 220V±10% / 50Hz/60Hz
