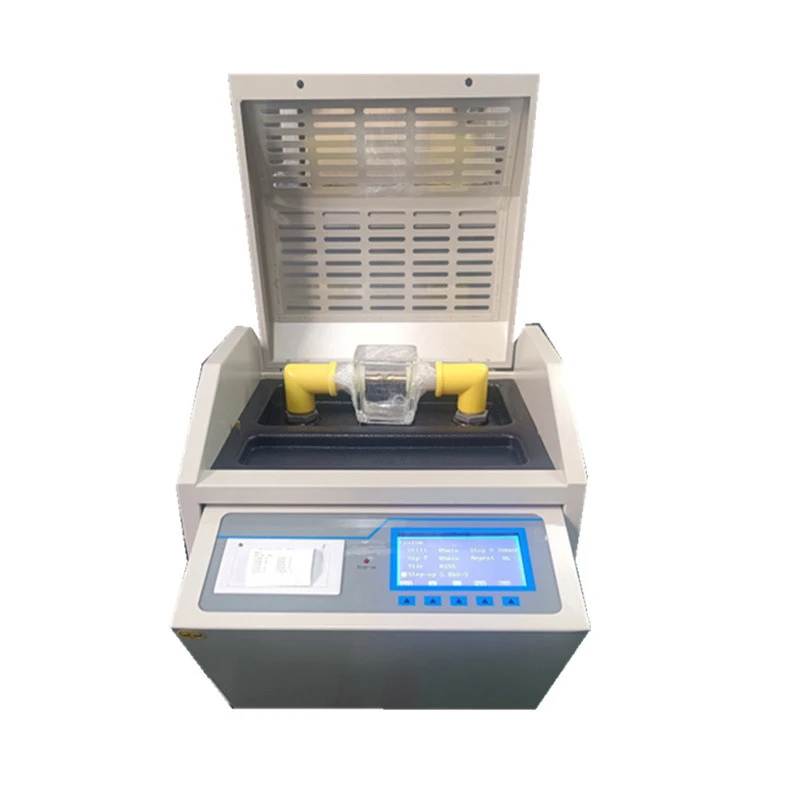

XZH Test XHYY100 Oil Bdv Breakdown Voltage Tester

Booster capacity:  1.5 kVA

Boost speed: 0.5kV/s-5.0kV/s (increase every 0.5) ten levels optional Error 0.2kV/s

Output voltage: 0~100 kV (adjustable)

Voltage accuracy: (2% reading + 2 digits)

Power distortion rate:   <1%

Electrode gap Standard: 2.5 mm

Test times: 6 times (1-10 times optional)

Rest time:  900S (0-5900S optional)

Interval stationary time: 300S (0-5900S optional)

Stirring time: 15S (0-250S optional)

Display mode: Large screen LCD English character display

Dimensions:  length 430 mm; width 350 mm; height 370 mm

Conditions of use

Ambient temperature 0~40ºC

Relative humidity ≤ 85%

Working power AC 220V ± 20%

Power frequency 50 Hz ± 5 Hz

Power consumption <200 W
