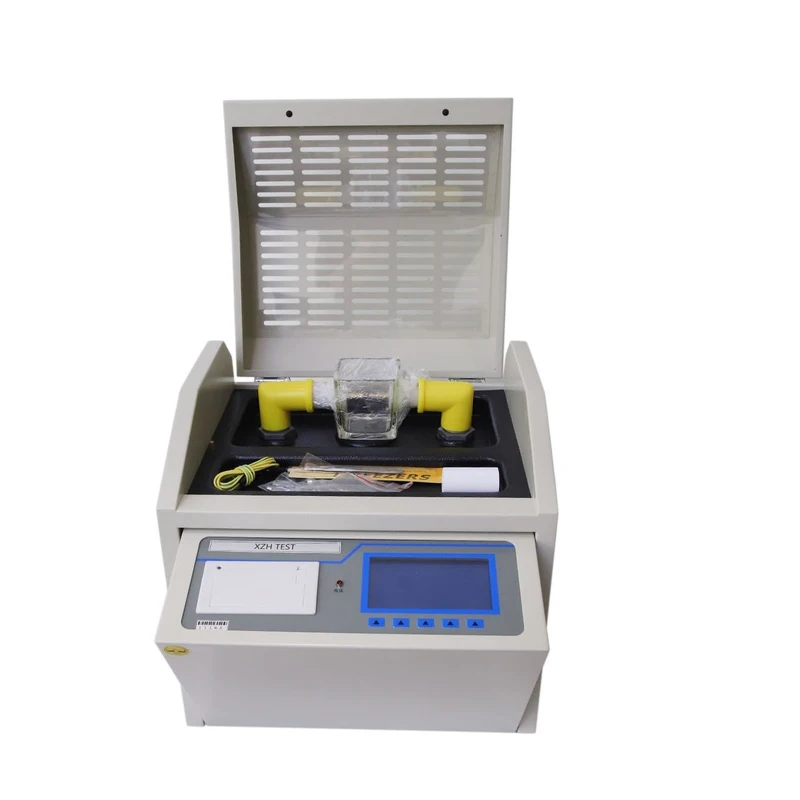

XZH Test XHYY102 Transformer Insulation Oil BDV Tester (0 ~ 80kV (100kV optional))

Output voltage: 0 ~ 80kV (100kV optional)

Voltage distortion rate: < 3%

Boost speed: 0.5 ~ 5kV/S (adjustable)

Rest time: 15 minutes (adjustable)

Voltage boost interval: 5 min (adjustable)

Voltage boost times: 1 ~ 9 times (optional)

Booster capacity: 1.5KVA

Measurement accuracy: ±3%

Power supply voltage: AC220V±10% 50Hz± 1Hz

Power: 200W

Applicable temperature: 0℃ ~ 45℃

Applicable humidity: < 75%RH

Overall dimensions: 465×385×425
