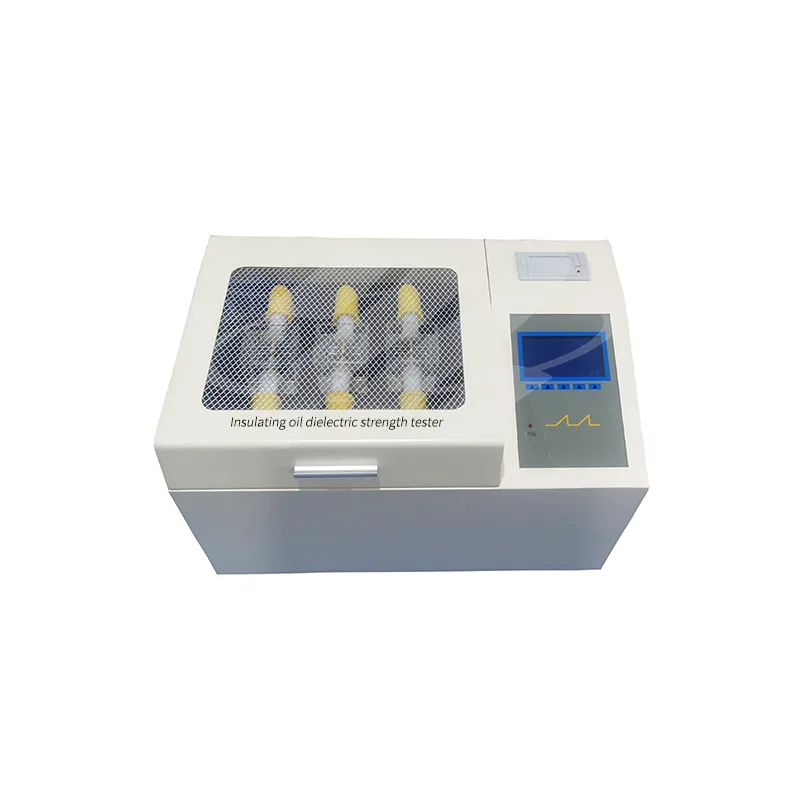

XZH Test XHYY102S BDV Tester for Transformer Oil (0～80 kV)

Booster capacity 1.5 kVA

Boost speed 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s four optional

Error 0.2kV/s

Output voltage 0～80 kV (optional)

Voltage accuracy ± (2% of reading + 2 digits)

Power distortion rate <1%

Electrode gap standard 2.5 mm

Number of trials 6 times (1-6 times optional)

Standing time 5 minutes (1-9 minutes optional)
