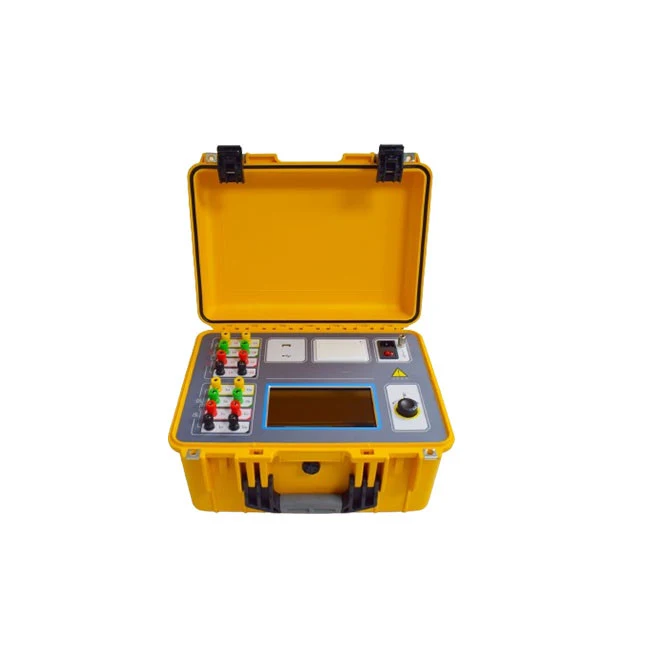

XZH Test XHZ1320 Digital Portable DC Winding Resistance Tester

Output current:

Single phase: 20A, 10A, 5A, 1A, 0.1A, 10mA, <1mA

Three phase: 10A+10A, 5A+5A, 1A+1A, 0.1A+0.1A

Measuring range:

Single phase:

20A level: 0.5mΩ ~ 1Ω

10A level: 1.0mΩ ~ 2Ω

5A level: 10mΩ ~ 4Ω

1A level: 0.1Ω ~ 20Ω

0.1A level: 2.0Ω ~ 200Ω

10mA level: 50Ω ~ 2kΩ

<1mA range: 500Ω ~ 25kΩ

Three phase:

10A + 10A gear: 0.5mΩ ~ 0.8Ω

5A + 5A level: 10mΩ ~ 1.6Ω

1A + 1A level: 0.1Ω ~ 8.0Ω

0.1A + 0.1A gear: 2.0Ω ~ 80Ω

Accuracy: ±(reading × 0.2% + 2 words)

Power supply: AC220V ±10%, 50/60Hz

Operating temperature: -10°C ~ +50°C

Relative humidity: <90%, no condensation

Instrument volume: 400 × 315 × 223 mm

Instrument weight: 9kg
