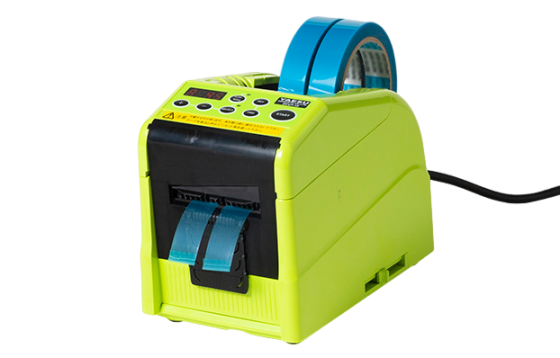

Yaesu ZCUT-10 테이프 디스펜서 (5～999mm, 6～60mm)

Cutting Length: 5～999mm（folding 15~999mm）

Folding Length: 7mm

Tape Width: 6～60mm

Max. Roll Diameter: 300mm

Tape Thickness: 0.05～0.3mm

Usable Tapes: Craft, PP, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil and Others

Feeding Speed: 220mm/sec. Approximately 50pcs/min.(in the case of cutting 100mm with craft tape)

Accessories: Separator, Blade Oil, Guide Plate, Power Cord

Rated Voltage: AC 100-240V 50/60Hz 25W, 2A Fuse (Built-In Inlet)

Dimension: 116×148×222mm (W×H×D)

Weight: 1.83kg

Features

Edge Folding Function. Easy to remove tape.

Six different lengths can be programmed for cutting.

Two roll tapes can be cut at the same time due to Dual Photo Sensor.

A cut piece of tape is positioned to take out.

Set a tape without using bobbin.

Non-adhesive tapes can be cut.

Build-in Separator for cutting two rolls tape, Guide Plate, and Blade Oil.
