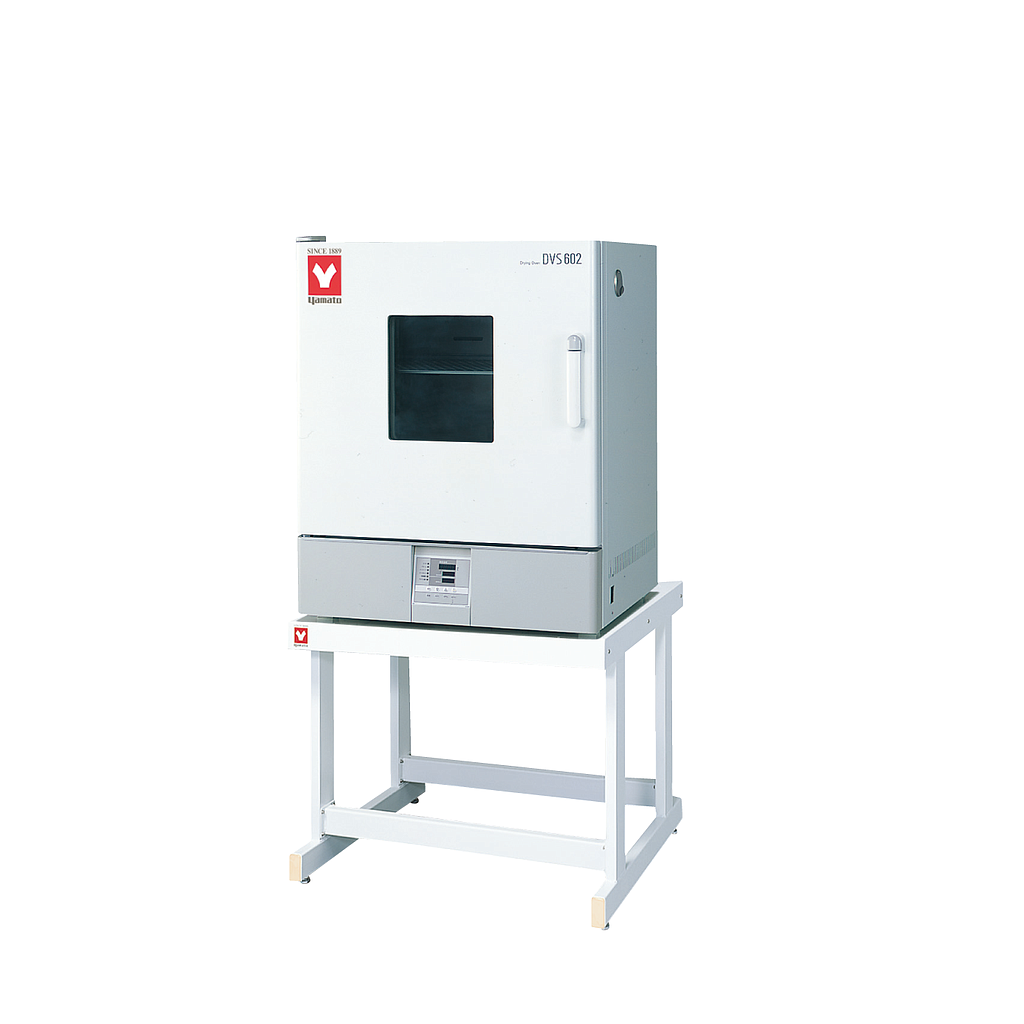

Yamato DVS602 Programmable Natural Convection Oven (162L, 1.36kW)

Method: Natural gravity convection

Operating temp. range: Room temp.＋5～260℃

Temp. control accuracy: ±1℃（at 260℃）

Temp. distribution accuracy: ±5℃（at 260℃）

Max. temp. reaching time: Approx. 90 min.

Interior material: Stainless steel

Exterior material: Cold rolled steel plate with melamine resin baking finish

Heat insulating material: Glass wool

Heater: Stainless pipe heater 1.36kW

Observation window: 250×280 mm Chemically strengthened glass×3

Cable hole: 30 mm l.D.×1 pcs.(right side)

Exhaust port: 30 mm l.D.×2 pcs.(on top)

Program mode: 6 patterns program controller, 30 steps (30 steps×1, 15 steps×2, 10 steps×3)

Heater circuit control: SSR control

Sensor: K-thermocouple

Shelf plate / Shelf bracket: Stainless steel, 2 pcs. / 4 pcs.

Internal dimensions（W×D×H mm）: 600×540×500mm

External dimensions（W×D×H mm）: 710×651×870mm

Remarks(dimensions): 162L

Power Source: AC220V 7A Single-phase

Weight: 63kg
