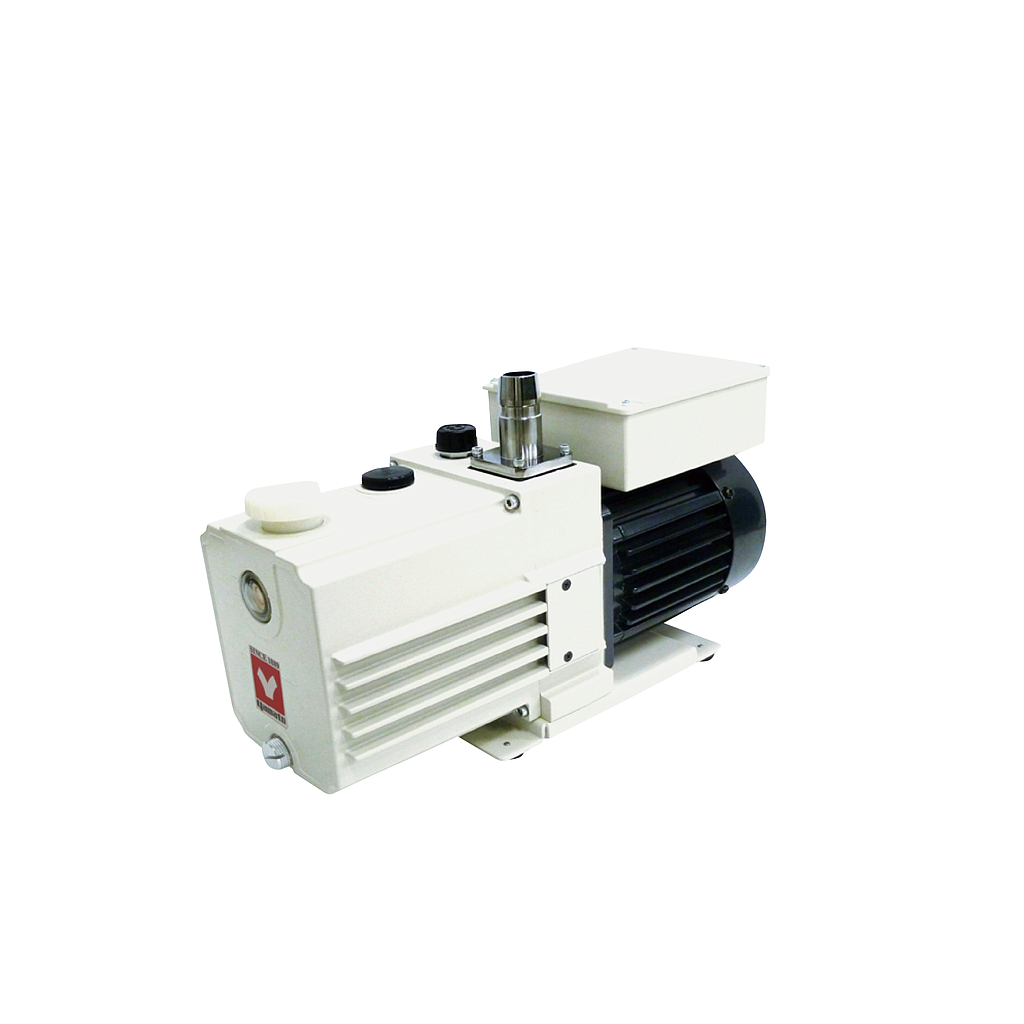

Yamato PQ100 Vacuum Pump (1000mL, 100l/min)

Oil amount (mL): 1000mL

Oil type: R-2

Effective exhaust speed (50 Hz): 100l/min

Effective exhaust speed (60 Hz): 120l/min

Attainable vacuum (Pa): 0.67 Pa

Motor: Single phase,100V,300W,2P

Suction pipe diameter (mm): O.D.27×I.D.20 mm

Operating atmospheric temp. range (deg.C): 7 to 40℃

External dimensions（W×D×H mm）: 150×414×235mm

Power Source: AC115 V/AC220V Single phase with step down transformer

Weight: 22kg
