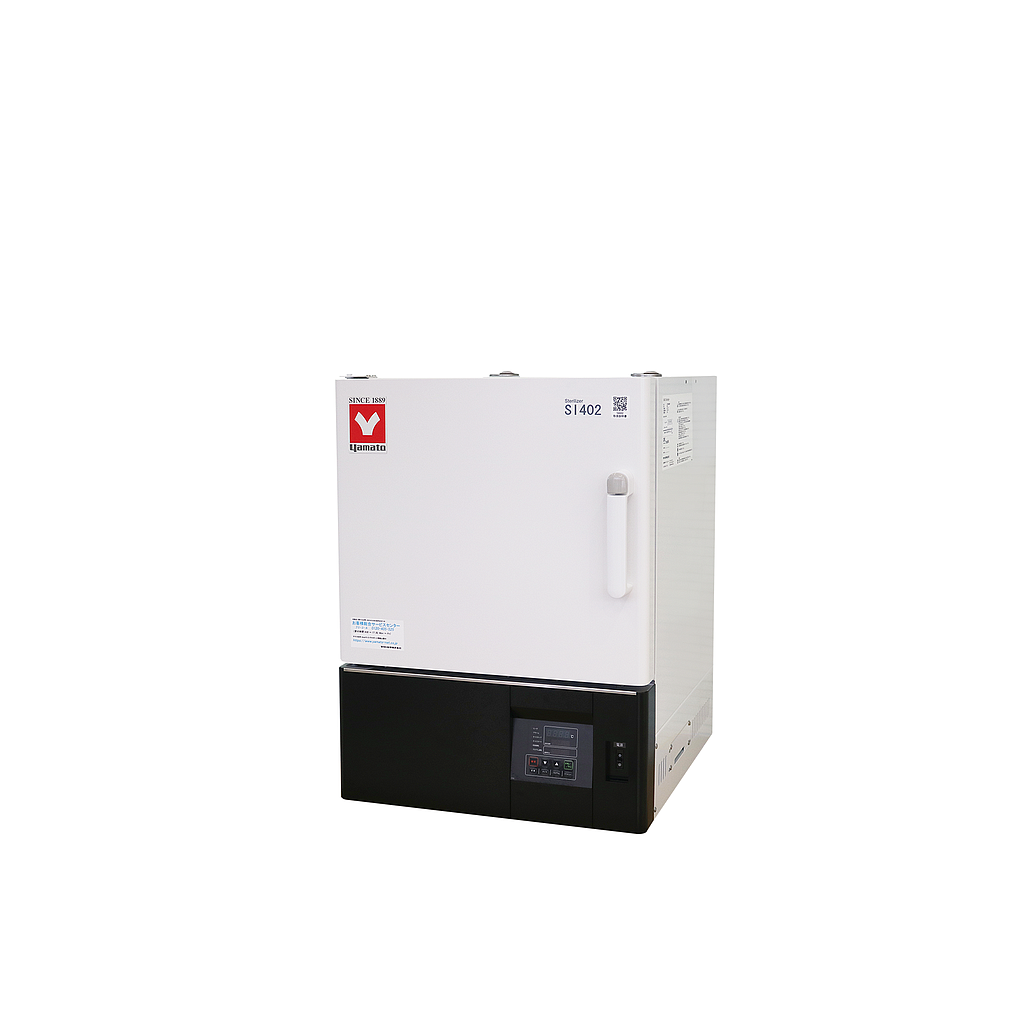

Yamato SI402 Dry Sterilizer (77L, 1.2kW)

Circulation method: Natural convection (for laboratory use only)

Operating temp. range: Room temp. +5~260°C

Temp. adjustment accuracy: JTM K05 ±1°C (at 260°C)

Temp. distribution accuracy: JTM K05 ±6°C (at 260°C)

Max. temp. reaching time: Approx. 70min.

Interior/Exterior: Stainless steel plate/chrome-free electrogalvanized steel sheet with chemical proofing coating

Heater: Wire type, 1.2kW

Air exhaust port: I.D. 30mm×2 (top)

Temp. control: PID control/VS6 type

Shelf plate/bracket: 2pcs./4pcs.

Optional: Stand/ONS60 ,Stacking support/ODK82, Shelf plate (1 plate with 2 brackets) etc.

Internal dimensions（W×D×H mm）: 450×430×400mm

External dimensions（W×D×H mm）: 550×540×777mm

Remarks(dimensions): Internal capacity 77L

Power Source: AC115/AC220V 50/60Hz, Single phase

Weight: 42kg
