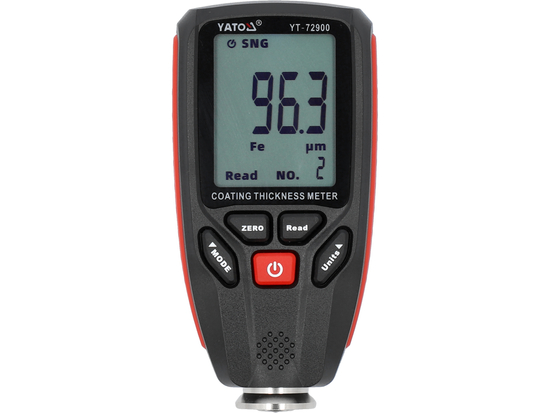

YATO YT-72900 Digital Paint Thickness Tester (0–1300 µm)

Measurement range: 0–1300 µm

Resolution: 0.1 µm

Measurement accuracy: 3% ± 2 µm

Minimum thickness of measured surface (Fe / NFe): 0.5 / 0.3 mm

Minimum radius of convex curvature: 1.5 mm

Minimum radius of concave curvature: 25 mm

Minimum diameter of measured surface: 6 mm

Measurement memory: 20

Dimensions: 105 × 52 × 25 mm

Power supply: battery

Battery type: 2 × 1.5V AAA

Relative operating humidity (Rh): <80%

Operating temperature: 0–40 °C

Storage temperature: −10 ~ +50 °C

Weight: 100 g

Application: checking paint coating thickness on aluminum and steel surfaces
