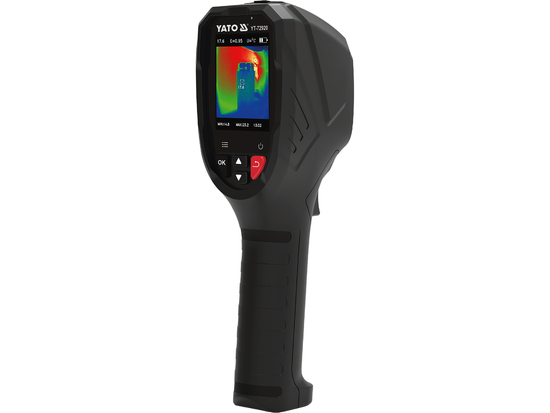

YATO YT-72920 Handheld Thermal Lmaging Camera (100-550˚C, 50 × 50°)

Temperature measurement range:

−20 ~ +150 / −4 ~ +302 °C/°F

100–550 / 212–1022 °C/°F

Relative operating humidity (Rh): 10–85%

NETD (thermal sensitivity): ≤60 @ 25°C, F/1.0 mK

Temperature accuracy: ±2°C / ±2%

Battery type: Li-Ion

Battery voltage: 3.7 V DC

Battery capacity: 2000 mAh

Charger type: USB Type-C

Charging current: 1 A

Max working time: 4 hours

Dimensions: 208 × 60 × 9 × 75 × 9 mm

Viewing angle: 50 × 50°

Internal memory: 8 GB eMMC (approx. 6.5 GB user available)

Recording format: JPG (images), MP4 (video)

Picture modes: thermal image, thermal + visible contours, visible image with temperature overlay

Color modes: rainbow, iron red, warm red, warm white, warm black

Effective resolution: 240 × 240 px

Visible light image resolution: 640 × 480 px

Infrared detector resolution: 96 × 96 px

Screen refresh rate: ≤18 Hz

Menu languages: Polish, English, Ukrainian, German, Italian, Chinese

Automatic shutdown: 5 min / 20 min / off option

Data export: USB (to computer)

Input voltage: 5V DC

Operating temperature: −5 ~ +45 °C

Storage temperature: −10 ~ +50 °C

Weight: 249.5 g
