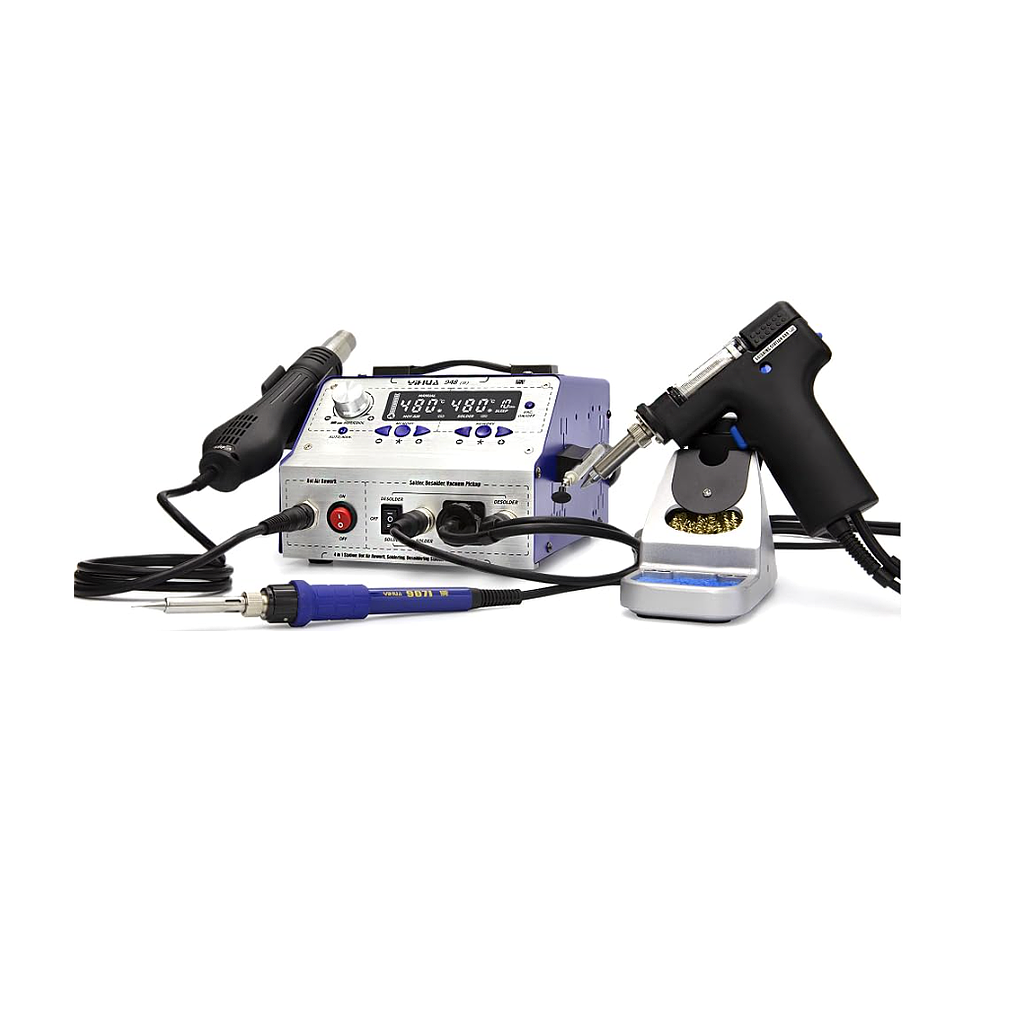

YIHUA 948-II Rework Station (100–480°C, 200–480°C, 380–480°C)

Rated Voltage Range: 230 V AC

Rated Power: 780 W

Control Unit Dimensions: L280 × W187 × H135 mm, ±5 mm

Operating Ambient Temperature: 0–40°C / 32–104°F

Temperature Range (Hot Air): 100–480°C / 212–896°F

Air Supply: Brushless fan with even air supply

Air Volume: Max. 120 L/min

Temperature Range (Soldering Station): 200–480°C / 392–896°F

Temperature Range (Desoldering Station): 380–480°C / 716–896°F

Intake Pressure: 0.05 MPa (measured on the nozzle)

Includes:

1 × Yihua 948-II station unit

1 × Yihua 948G desoldering gun

1 × YIHUA 907I soldering iron

1 × Suction cup (for IC suction)

1 × Bracket (suitable for soldering iron and desoldering gun)

4 × Desoldering nozzles, 4 × hot air nozzles

1 × Soldering residue chamber (transparent)

1 × Heat-resistant pad

2 × Ceramic filters

1 × ESD-safe tweezers

2 × Rubber brackets

2 × Filter springs

1 × IC extractor

10 × Filtration adsorbers

1 set of cleaning pens
