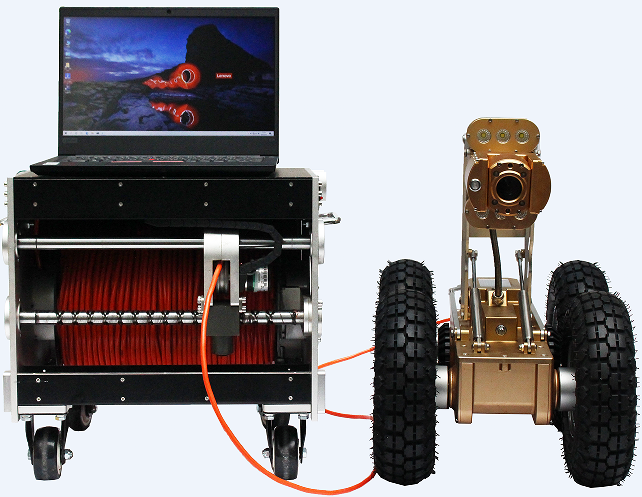

YKndt YKGD-X6 Sewer/pipelines/drain inspection camera with crawling robot (Φ230mm~Φ3000mm; -20 ℃ ~ + 55 ℃)

Technical specificaions :

Applicable Pipe diameter : Φ230mm~Φ3000mm

Wheel configure :  5", 8", 10" optional

Air tightness : Internal pressure retention 1.2 to 2.0 atmospheres

Wading depth :  Able to wade to a depth of 10 meters

Internal pressure monitor : Body indicator green light is Normal, red light overvoltage

CCD pixel :  8000000

Protection grade :  IP68

Zoom multiple : 36x optical, 12x electronic

Working temperature :  -20℃~+55℃

Rotate Function :  Radial 360° rotation, 2x110° pitch,

Datasheet
