Power supply: 100240VAC, 50/60Hz, 12A
Rated power: 20W
Screw feeding method: Mechanical transmission
Screw feeding speed: 60 ~ 90 pcs/min
Working voltage: 15V DC (500mA)
Weight: 4.1 kg
Screw capacity of container: 450ml
Suitable screw diameter: M2.0 ~ M5.0
Workable screw length: ≤16 mm
Product size: 326162222 mm (LWH)
Product features:

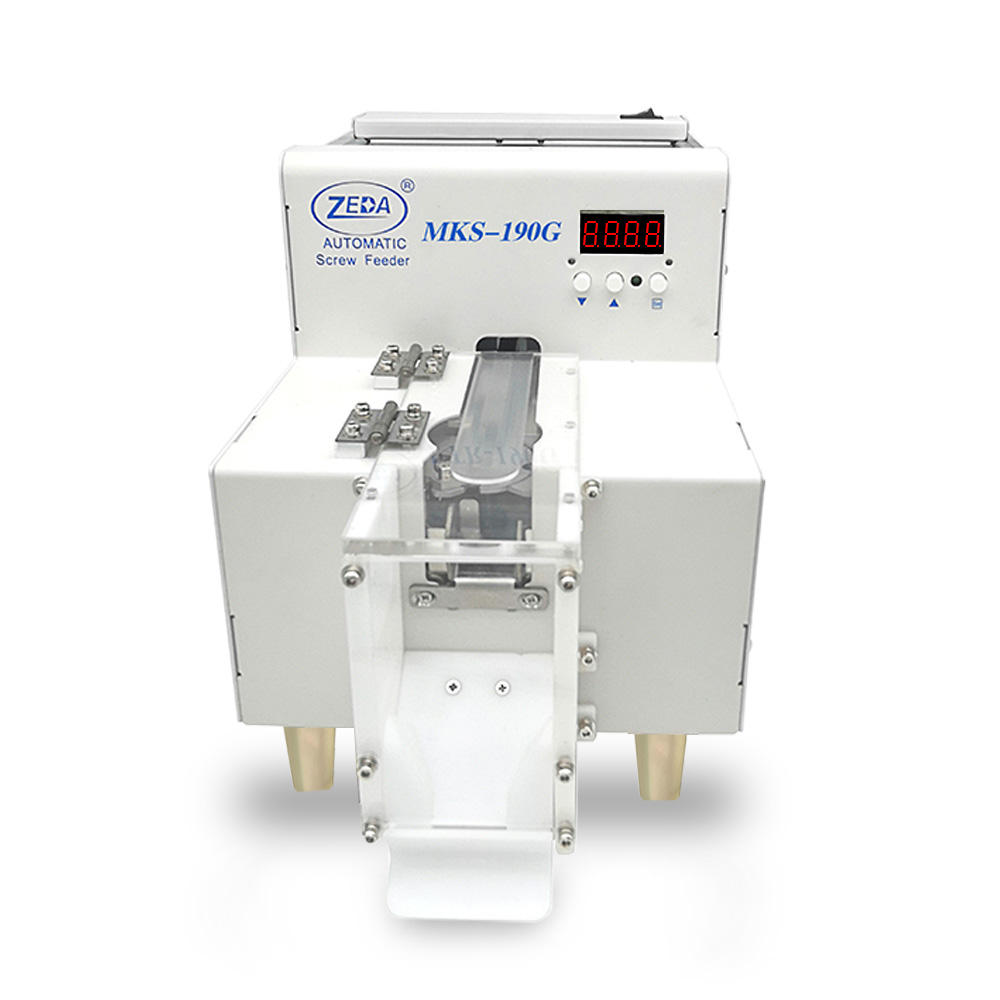

It is a high accuracy digital screw counting machine, counting range -9999 as you want, usually suitable for screws or other small parts with counting package, setting goal quantity for screws, it can avoid missing locking screws; Once a setting counting goal has finished, it will be started to next automatic processing;
It can be working with automatic locking screw platform (half-full automatic machine) use by PLC, supports unusual/uncommon screws, 1:1 shortage screws, screws with gap, reduce labor cost and decrease labor intensive;
Usually use for home appliance products, such as printer, radio, automatic parts, toys etc.
Packaging included:
1 * Automatic screw feeding device
1 * Manual operation instruction
1 * Internal hexagonal wrench
2 * Power adapter with cable
