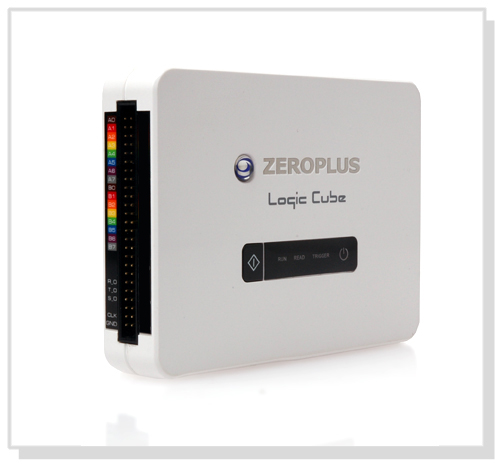

Zeroplus LAP-C(16064) PC-Based Logic Analyzer (100 Hz ~ 200 MHz, 75MHz)

Operating system: Windows 10/8.1/7/Vista/XP/2000

Interface: USB 2.0

Sample rate (Internal Clock): 100 Hz ~ 200 MHz

Sample rate (External Clock): 75 MHz

Bandwidth: 75 MHz

Working voltage range: -6 V ~ +6 V

Accuracy: ±0.1 V

Memory: 1 Mbits

Depth per channel: 64 Kbits

Data compression: up to 256x

Trigger condition: Pattern / Edge

Trigger channels: 16 CH

Trigger delay: Yes

Trigger level: 1 level

Trigger count: 1 ~ 65535

Time base range: 5 ps ~ 10 ms

Vertical size: 1 ~ 5

Language: Chinese / English

Max trigger pages: 8192 pages

Data contrast: Not supported

Latch function: Not supported

Protocol packet trigger: Parallel

Power supply: USB (DC 5V, 500 mA)

Power at rest: 1 W

Power consumption: 2 W

Maximum input voltage: ±30 V

Impedance: 500 kΩ // 10 pF

Certifications: FCC / CE / WEEE / RoHS / REACH

Dimensions: 125 × 92 × 25 mm

Test cable: 8 pin ×2, 2 pin ×1, 1 pin ×1

Probe: 20 pcs/package

USB cable: 1

Driver CD: 1

Installation guide: 1

Carry bag: 1
