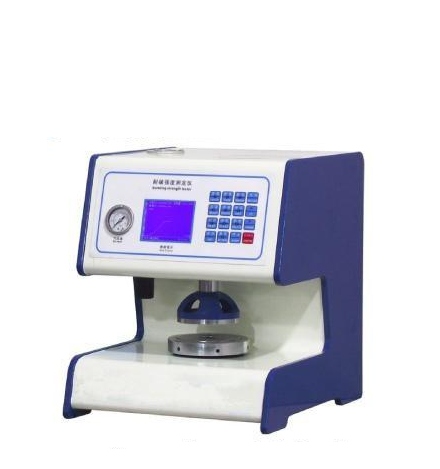

Cell Instruments BNP-01 파열 력 시험기
생산업체: Cell Instruments Model: BNP-01 보증: 12 Month - 견적요구
- 견적요구
- 연락처
Measuring Range: 150~6000kpa
Accuracy: + / - 0.5% or less(≤±0.5%)
Resolution: 0.01 kpa
Deformation Error: 1 mm or less
Plates Concentricity: 0.25 mm or less(≤0.25mm)
Diaphragm resistance : bulge height 10mm/(170～220)kPa, bulge height 18mm/(250～350)kPa
Transmit hydraulic volume: 175±5ml/min
Pressure Plate Diameter: upper:31.5±0.5mm, lower: 31.5±0.5mm
Display: 4.0 in. LCD with curve display
Clamping Force: ≥690kpa (adjustable)
Unit Conversion: Kg/cm2, kpa, LBF/in2
Dimension: 360*420*510mm
Weight: 55KG
Standard ISO2759, GB1539, GB/T6545
Details
