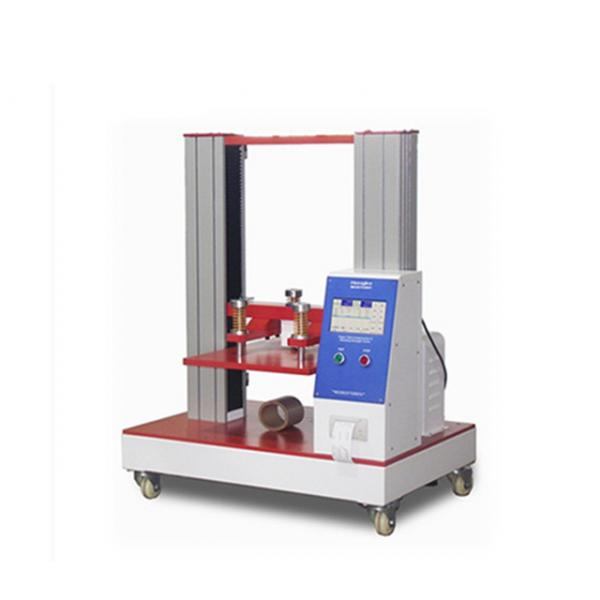

Cell Instruments CST-S/M/L 용기 압축 시험기

  • 생산업체: Cell Instruments
    Model: CST-S/M/L
    보증: 12 month
    • 견적요구 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

  • 품질 보증
  • 공인 보증
  • 집으로 배달
  • 간단하게 거래하기

Manufacturer: Cell Instruments

Model: CST-S/M/L

Warranty: 12 months

Pressure range: 0-10KN

Force resolution: 0.1N

Display error: ±2%

Display variation: ≤2%

Back to zero error: ±0.2%FS

Deformation measurement accuracy: ±1mm

Compressing speed adjustable range: 5mm/min~90mm/min

Compressing speed relative error: ±3%(within 5~90mm/min)

Standard compressing speed: 12mm/min

Stacking test speed: 5mm/min

Lower platen stroke: 800mm

Test space: 400mm(L)*600mm(W)*600mm(H) (other space available)

Upper and lower platen parallelism degree: ≤1mm

Dimension: 850mm(L)*600mm(W)*1100mm(H) (varies with different test space)

Standards ASTM D642, ASTM D4169, ISO12048, TAPPI T804, JIS Z0212, GB/T 16491, GB/T 4857.4

Chi tiết
