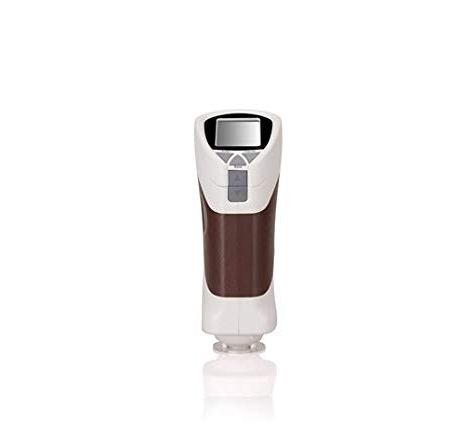

CHN SPEC CS-10 색도계

  • 생산업체: CHN SPEC
    Model: SPEC CS-10
    출처: China
    보증: 12 month
    • 견적요구 견적요구
  • Price (exclude tax) 16,450,000 VND
    Price (include tax) 18,095,000 VND
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Ilumination system: 8/d(8°/diffused illumination,specular component included(SCI)
Display modes: Colorimetric values: L*a*b,L*C*h,△E*ab,XYZ,relative RGB values;
Color difference values: △(L*a*b),△(L*C*h);
Measuring caliber: About 8mm
Measuring conditions: CIE 10° standard observer; CIE D65 light source
Measuring range: L*:1-100
Repeatability: Standard deviation within△E*ab*,0.1(condition: measure the white calibration board 30 times for average
Storage: 100 sets of standard samples; up to 100 under each standard sample
Measuring time: About 0.5 seconds
Measuring light source: LED
Interface languages: Chinese,English
Power source: Four AA1.5V Alkaline battery or nickel-metal hydride batterys;Exclusive DC5V adapter
Port: USB 2.0, printer
Weight: 550g
Size: 77×86×210mm

Details

Datasheet

High performance-price ratio among international similar products
●Both Chinese and English language options
●Ultra stable performance
●Display precision 0.01
●Repeatability precision AE standard deviation 0.1
●Enhance the measure accuracy through white and black calibration



Professional design, powerful instrument functions

● Human engineering design
● Large data storage space
● Multiple modes of color values
● PC software and data control
● USB for data transmission
● Provides accurate measuring time settings
● Can manually set up L*a*b* value for standard samples
● Suitable for a company internal and external
 color evaluation and data control

Specifications

Illumination system 8/d(8°/diffused illumination),specular component included(SCI)
Display modes Colorimetric values: L*a*b,L*C*h,△E*ab,XYZ,relative RGB values;
Color difference values: △(L*a*b),△(L*C*h);
Measuring caliber About 8mm
Measuring conditions CIE 10° standard observer; CIE D65 light source
Measuring range L*:1-100
Repeatability Standard deviation within△E*ab*,0.1(condition: measure the white calibration board 30 times for average
Storage 100 sets of standard samples; up to 100 under each standard sample
Measuring time About 0.5 seconds
Measuring light source LED
Interface languages Chinese,English
Power source Four AA1.5V Alkaline battery or nickel-metal hydride batterys;Exclusive DC5V adapter
port USB 2.0, printer
weight 550g
Size 77×86×210mm
