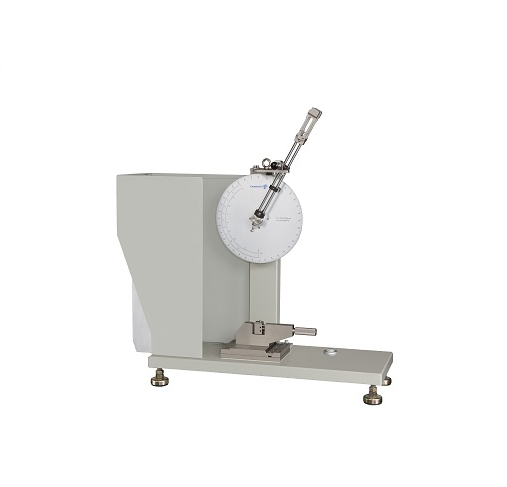

Cometech QC-639D 기계 충격 시험기 (1J~25J)

  • 생산업체: Cometech
    Model: QC-639D
    출처: Taiwan
    • 견적요구 견적요구
  • 연락처
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Test Capacity: Izod 1~25J; Charpy 1J~25

Best accurate range: 20~80% of the full capacity.

Test type:  IZOD、CHARPY

Start impact Angle: 150 degree

Dimension: 90 × 38 × 76 cm

Weight: 160 kg
Accessories: Operation manual, energy calculation software.

Optional: Related energy test hammer and different test vise. QC-640 V-shape notcher

Note: choose option suitable nessesary

Details

Catalog


Option

- QC-639 CE Protection Cover

- ISO Serial Optional Accessories:

+ IP-0004-00I: Izod vise ISO 180

+ IP-0102-00I:  Izod hammer 1J (Shared by ISO / ASTM)

+ IP-0272-00I:

Izod hammer (Dual range 2.75J and 5.5J) (Shared by ISO / ASTM)

Izod hammer (Dual range 11J and 22J) (Shared by ISO / ASTM)

Izod hammer  (Dual range 25J and 50J)(Shared by ISO / ASTM)

+ IP-0005-00I: Charpy vise ISO 179 / For Speed 2.9m/s

Block for Charpy test Speed 2.9m/s

+ IP-0005-20I: Charpy vise ISO 179 / For Speed 3.8m/s

Charpy hammer  1J / Speed 2.9m/s

Charpy hammer  2J / Speed 2.9m/s

Charpy hammer  4J / Speed 2.9m/s

+ IP-0503-F0I: Charpy hammer  5J / Speed 2.9m/s

Charpy hammer  7.5J / Speed 3.8m/s

Charpy hammer  15J / Speed 3.8m/s

Charpy hammer  25J / Speed 3.8m/s

Charpy hammer  50J / Speed 3.8m/s

- ASTM Serial Optional Accessories

+ IP-0004-00A: Izod vise ASTMD256

  Izod hammer 1J (Shared by ISO / ASTM)

+ IP-0272-F0A:

Izod hammer (Dual range 2.75J and 5.5J) (Shared by ISO / ASTM)

Izod hammer (Dual range 11J and 22J) (Shared by ISO / ASTM)

Izod hammer  (Dual range 25J and 50J) (Shared by ISO / ASTM)

+ IP-0005-00A:

Charpy vise ASTMD 6110

Charpy hammer  1J / Speed 3.46m/s

Charpy hammer  2.7J / Speed 3.8m/s

Charpy hammer  5.4J / Speed 3.8m/s

Charpy hammer  10.8J / Speed 3.8m/s

Charpy hammer  21.6J / Speed 3.8m/s

- QC-640: Impact Specimen V-Notcher

CQC-640 cutter (space for QC-640)
