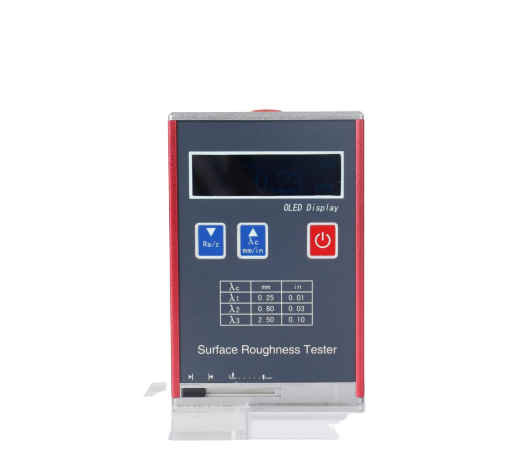

EBP SR-100 Surface Roughness Tester

Testing parameters: Ra, Rz, Rq, Rt

Measuring range (um):

 Ra, Rq: 0.05-15.0

 Rz, Rt : 0.1-50.0

Sample length (mm): 0.25, 0.80, 2.50

Evaluation length(mm): 1.25, 4.0, 5.0

Stroke length (mm): 6

Indication accuracy: 0.01

Indication error: ±(7-10)%

Variability: <12%

Power: Rechargeable li-battery

Stylus static force: ≤ 0.016N

Force measuring rate of change: ≤ 800N/m

Working temperature: -20℃-40℃

Relative humidity: <90%

Weight of Host: 200g

Size: 106mmx70mmx24mm
