Elcometer A415CFNFTI 산업용 페인트 및 파우더 두께 게이지 (0 ~ 1000μm, USB,블루투스)
생산업체: ELCOMETER Model: A415CFNFTI - 견적요구
- 연락처
Built in probe type: Ferrous / Non-Ferrous (FNF)
Live data output: USB and Bluetooth
Reading rate: 60+ readings per minute
Accuracy1: ±1-3% or ±2.5μm
Measurement Range: 0-1000μm
Operating Temperature: -10 to 50°C
Relative Humidity (RH): 0 to 95% (RH)
Power Supply: 2 x AA Batteries or via USB
Gauge Dimensions: 14.1 x 7.30 x 3.70cm
Gauge Weight: 156g / 5.5oz (including batteries)
Packing List: Elcometer 415 gauge, 2 x AA batteries, steel & aluminium check pieces, foil set, wrist strap, impact resistant carry case,
screen protector, calibration test certificate, operating instructions, USB cable, ElcoMaster CD

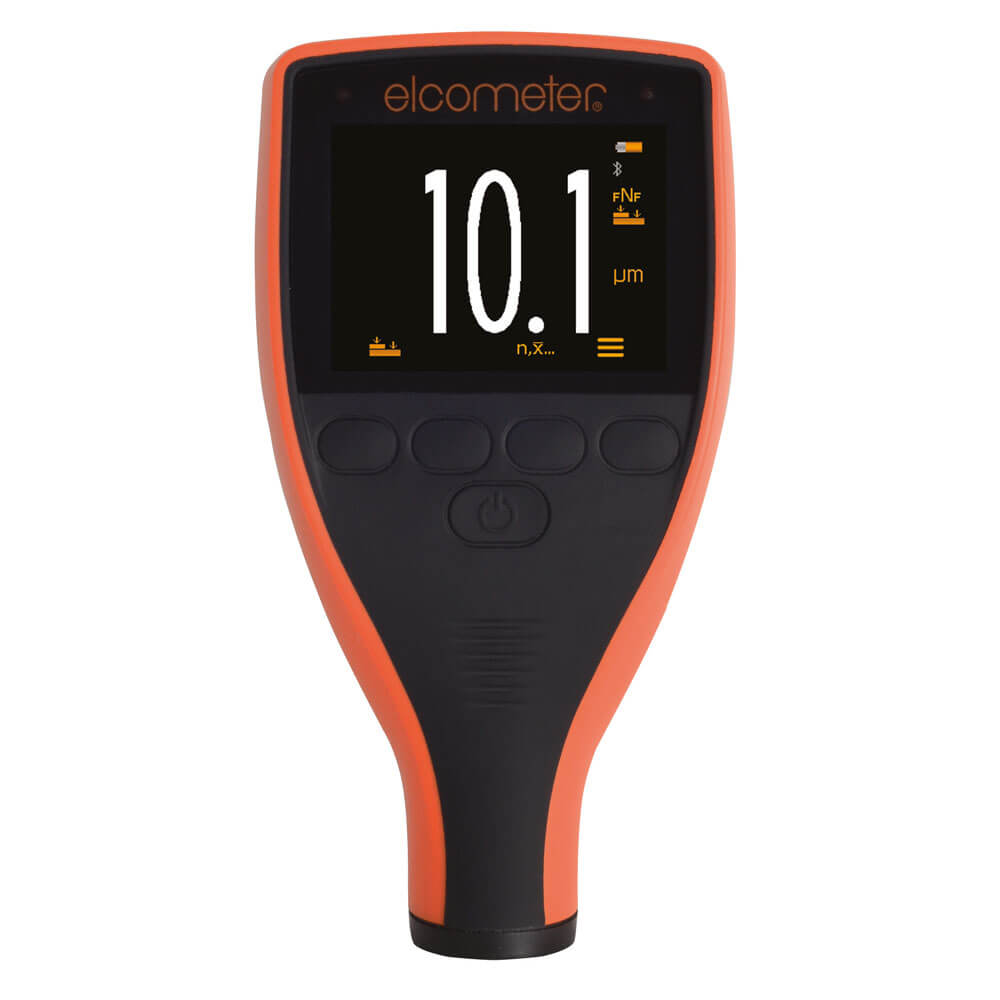

Elcometer 415 Industrial Paint & Powder Thickness Gauge
The new Elcometer 415 Industrial Paint & Powder Thickness Gauge provides simple, fast and accurate coating thickness measurements on smooth and thin industrial paint and powder coatings.
The new Elcometer 415 automatically switches between ferrous and non-ferrous metals. Designed to measure cured paint and powder coatings up to 1000μm (40mils), the thickness gauge is ideal for the industrial paint & powder market.
With a reading rate of 60+ readings per minute, the new paint and powder thickness gauge allows to inspect more industrial materials in less time.
Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual paint and powder thickness readings can be transferred via USB or Bluetooth® to PC or a mobile device for analysis and instant report generation.
Key features and benefits of the Elcometer 415 Paint & Powder Thickness Gauge include:
- Incredibly fast (60+ readings per minute), reduces inspection times, increasing productivity
- Automatically switches between ferrous and non-ferrous substrates1
- Measures cured paint & powder coatings up to 1000μm (40mils)
- 1 point and 2 point calibration ensures accuracy on smooth and thin coated substrates
- Easy to use, ergonomic design provides maximum comfort for continuous use
- Large easy to read values in microns or mils
- Auto rotating large colour display provides clear visibility whatever the angle of measurement
- Scratch, solvent and powder resistant display
- Rugged and resistant to powder coatings ingress equivalent to IP64
- Transfer live data via USB or Bluetooth® to ElcoMaster® for instant report generation
Elcometer 415 Industrial Paint & Powder Thickness Gauge
Technical Specification
|
Model B |
Model B |
Model T |
Model T |
Part Number |
A415CFBI |
A415CFNFBI |
A415CFTI |
A415CFNFTI |
Calibration Test Certificate |
• |
• |
• |
• |
Built in probe type |
Ferrous (F) |
Ferrous / Non-Ferrous (FNF) |
Ferrous (F) |
Ferrous / Non-Ferrous (FNF) |
On screen statistics
Number of readings, n; Average (mean), x; Lowest reading, Lo Highest reading, Hi |
■ |
■ |
■ |
■ |
Live data output |
USB |
USB |
Bluetooth® & USB |
Bluetooth® & USB |
Reading rate |
60+ readings per minute |
|||
Accuracy1 |
±1-3% or ±2.5μm (±0.1mil) |
|||
Measurement Range |
0-1000μm / 0-40mils |
|||
Operating Temperature |
-10 to 50°C / 14 to 122°F |
|||
Relative Humidity (RH) |
0 to 95% (RH) |
|||
Power Supply |
2 x AA Batteries or via USB (rechargeable batteries can also be used) |
|||
Gauge Dimensions |
14.1 x 7.30 x 3.70cm / 5.55 x 2.87 x 1.46” (h x w x d) |
|||
Gauge Weight |
156g / 5.5oz (including batteries) |
|||
Packing List |
Elcometer 415 gauge, 2 x AA batteries, steel & aluminium check pieces*, foil set, wrist strap, impact resistant carry case, screen protector†, calibration test certificate, operating instructions, USB cable†, ElcoMaster CD† & 2 year warranty extension card |
1 When subject to a 2-point calibration: ±1% when calibrated close to the required thickness, ±3% across the range.
† Model T
* F models: steel check piece; FNF models: steel & aluminium check pieces
