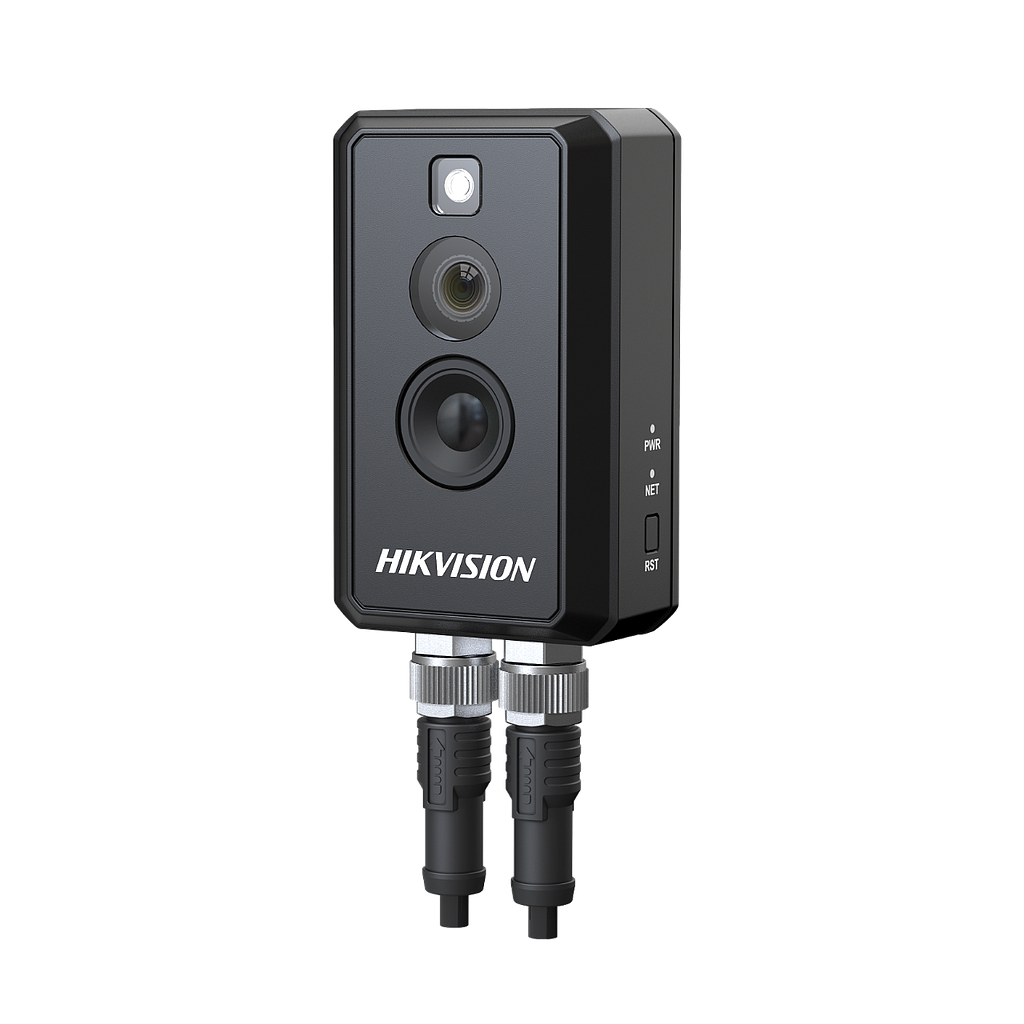

Hikvision DS-2TA21-2AVF Thermographic Cube Camera (-20°C ~ 150°C,Focal Length: 1.8mm, 160x120 pixels)
생산업체: Hikvision Model: DS-2TA21-2AVF - 견적요구
- 견적요구
- 연락처
Thermal
Image Sensor: VOx Uncooled Focal Plane Arrays
Resolution: 160×120
Pixel Interval: 17μm
Response Waveband: 8μm to 14μm
NETD: Less than 40 mK (@25°C,F#=1.1)
Focal Length: 1.8mm
Focus Mode: Athermalized
Field Of View: 90° × 66.4° (H × V)
IFOV: 9.44 mrad
Image Frequency: 25 hz
Aperture: F 1.1
Min. Focusing Distance: 0.1 m
Optical
Image Sensor: 1/2.8” Progressive Scan CMOS
Resolution: 1600 × 1200
Focal Length: 2 mm
Field Of View: 92.6° × 75.8° (H × V)
Compression Standard: Video Compression
H.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+
Video Bit Rate: 256 Kbps to 16 Mbps
Smart Function
Temperature Range
-20°C to 150°C (-4°F to 302°F), 20°C to 350°C (68°F to 662°F)
Temperature Accuracy
Max (±2°C, ±2%)
Temperature Measurement Rules
Display Max. and Min. temperature in live view; 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Main Stream :Thermal channel: 25fps (640 × 480);Optical channel: 25fps (1600 × 1200)
Sub Stream
Thermal channel: 25fps (640 × 480);Optical channel: 25fps (1600 × 1200)
Image Enhancement: 3D DNR, EIS
Image Setting: Rotate mode, brightness, contrast and AGC adjustable by client software or web browser
Power Supply
10-30 VDC, Max. 4W PoE (802.3af, class 2)
Working Temperature And Humidity
-20 °C to 50 °C (-4 °F to 122 °F), humidity less than 95%
Protection Level: IP 67
Weight: Approx. 335 g (0.74 lb)56 mm × 38.8 mm × 110 mm (2.20" × 1.53" × 4.33")
Dimension: 56 mm × 38.8 mm × 110 mm (2.20" × 1.53" × 4.33")
