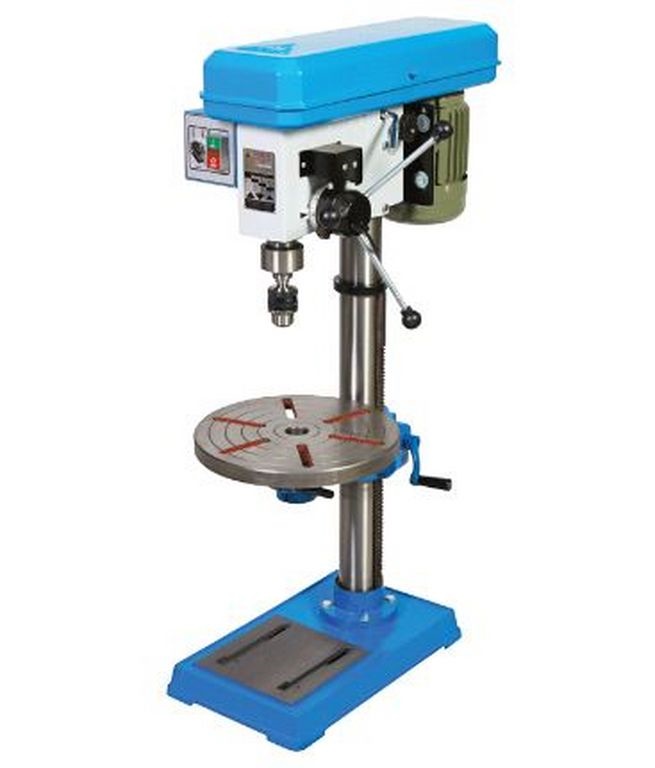

Hong Ky HK-KC12T 드릴 머신

  • 생산업체: Hồng Ký
    Model: KC12T
    출처: Vietnam
    보증: 12 month
    • 견적요구 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Drill route 80 mm
Distance from bit to drilling plate 420 mm
Distance from bit to cyclinder 182.5 mm
Drill bit diameter 3 - 16/25 mm
Tap - Iron: M4-M10
- Cast iron: M4-M12
Diameter of cylinder 75 mm
Cone hole to fit the drill drive Cone 3
Speed stage 200-280-350-450-480-680-1155-1580-2220
Motor (HP, Phase) 1HP-3Phase-4P
Machine size 700X360X1200
Machine weight 95 Kg

Option: Can choose motor 3 phase

Chi tiết
  • All the drilling machine parts are processed under fully automatic technology ( CNC ) of Japan
  • The accuracy between splines ( grooves ) is 0.05 mm ( 5/100)
  • All the machine parts are precisely grinded 0.005 mm ( 5/1000)
  • The set of axis is made of S45C steel that helps to increase the longevity
