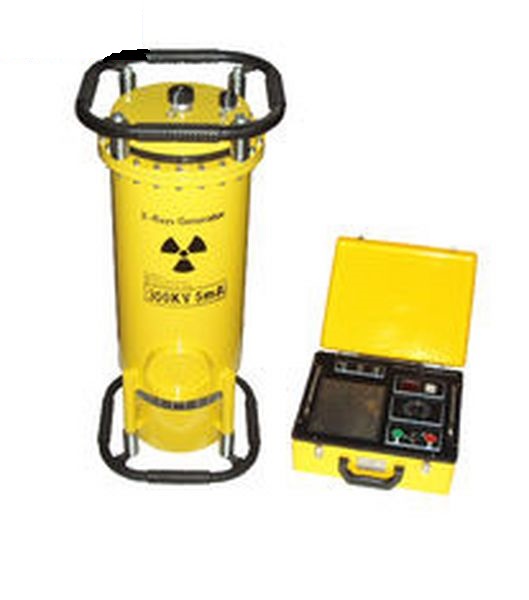

방향 방사선 알루미늄, 고무를 위한 휴대용 엑스레이 하자 발견자 XXQ-3205

  • 생산업체: HUATEC
    Model: XXQ-3205
    출처: China
    • 견적요구 견적요구
  • 연락처
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267




Feature:

Checking the software and hardware itself after start the machine

Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports

Can adjust exposure parameters with keys ( easy operation.)

Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field

Can adjust high voltage slowly for protecting X-ray generator

Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.

Including complete protecting system: over KV, over KV, low mA, over mA, over temperature and optical-sound alarming

Convenient for repairing and maintenance

Much more Substance for structure designing, much more convenient for local operation

Time can be changed for±0.3 according to the power supply net to make the exposure more precise

Specification:

Output voltage

(Kv)

Input

(KW)

Focus spot

(mm)

Beam angle

Max penetration

(mm)

Weight (KG)

Dimensions (mm)

Generator

Controller

Generator

Controller

180-320

3.2

4.0X4.0

40°+5°

53

42

18

335x335x835

350x290x160

Standard Delivery

Directional glass X-ray tube

 1 Pcs



Generator

 1 Set



High voltage joins cable

 1 Pcs

25 Meters

Controller

  1 Set



Power cable

 1 Pcs

10 Meters

Grounding cable

 1 Pcs

5 Meters

Accessories

  1 Set



(Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)



Details
