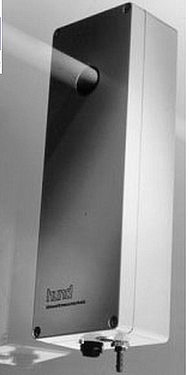

HUND TM-F 분진 측정 장비 (0 - 20mg/m³)

  • 생산업체: HUND
    Model: TM-F
    출처: Germany
    보증: 12 month
    • 견적요구 견적요구
  • Price (exclude tax) 105,030,045 VND
    Price (include tax) 115,533,050 VND
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Measuring ranges : 0 - 2 mg/m³ , 0 - 20mg /m³ , switchable
Factory calibration with DEHS aerosol , d = 1 Am
Limit of detection : approx . 5Mg /m³ ( DEHS aerosol , d = 1 Mm )
Limit can be set with potentiometer ( 0 - 100 % )
Switching out put : triggered by limit ( 230 V AC , 5 A)
Current out put : 4 - 20 mA
Voltage out put : 0 - 3.6 V
Purge - air connector ( particle - , oil - and water-free pressurized air)
Purge air requirement : D = 2v ( D : flowrate in l /m i n . , v : sample gas velocity in m/s )
Temperature range during measurement : 5 - 70 ° C
Supply voltage : 230 V AC , 50 Hz , approx . 8 VA
Degree of protection : IP56
Dimensions : approx . 320 x 120 x 80 mm³

Details

datasheet

manual

Option Accessories for TM-F
Filter capsules (1 set = 5 pcs.)
Bypass adapter

TabelleFeinstaubmessung en 03 2017
