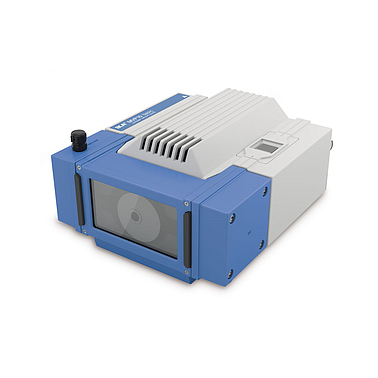

IKA MVP 10 기본 진공 펌프 (0003980000)

  • 생산업체: IKA
    Model: MVP 10 (0003980000)
    출처: Germany
    보증: 12 month
    • 견적요구 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Pump rate max. (50/60Hz): 1.7 m³/h

Pump rate max. (50/60Hz): 28.3 l/min

Final pressure without gas ballast: 7 mbar

Suction levels: 2

Cylinder: 2

Connection diameter suction side: 10 mm

Connection diameter pressure side: 10 mm

Gas ballast valve: yes

Input pressure: 7 - 1050 mbar

Speed range: 1380 - 1680 rpm

Nominal speed: 1380 rpm

Noise at low. pressure: 65 dB(A)

Dimensions (W x H x D): 245 x 155 x 320 mm

Weight: 11.5 kg

Permissible ambient temperature: 10 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 54

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 180 W
