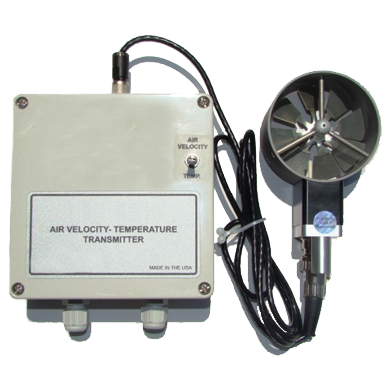

Kanomax TAT420 베인 타입 에어 플로우 트랜스미터

  • 생산업체: KANOMAX
    Model: TAT420
    출처: Japan
    보증: 12 month
    • 견적요구 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Manufacturer: Kanomax

Model: TAT420

Origin: Japan

Warranty: 12 months


- Air Velocity:

Metal rotating vane: AP275/APT275: 2.75″ diameter; AP100/APT100: 1″ diameter

Range: 1″ Probe: 300 to 6890 FPM (1.5 to 35 m/s); 2.75″ Probe: 50 to 7800 FPM (0.2 to 40 m/s)

Accuracy: 1″ Probe: ±0.5% of Full-scale + 0.75% of READING ±1 digit; 2.75″ Probe: ±1.0% of READING ±1 digit

Resolution: 1 FPM or 0.01 m/s

- Temperature:

Range: APT Probe: -4 to 176 F (-20 to 80C)

Accuracy: ±0.5℃

Resolution: 0.1 F or 0.1℃

- Analog Output: Current output: DC 4~20mA; Voltage output: DC 0~1V or 0~5V

- Operating Temperature: Transmitter: -4 to 176F (-20 to 80C); Probe: -22 to 212F (-30 to 100C)

- Power Supply: 120 or 220 VAC (50-60 Hz); 10 to 30 VDC

- Dimensions: Transmitter Housing: W 4.8 x D 2.2 x H 4.8 inches (12.2 x 5.6 x 12.2 cm)


Chi tiết

- Featrure:

Specially designed for monitoring indoor air quality.

Premier series cabling and probe connections.

Simultaneous measurement of air velocity and temperature.

The heavy, all metal probe can be used for airstreams that have a wide range of humidity, temperature and contaminants without compromising accuracy.

Please specify types of output (4-20mA, 0-1VDC or 0-5VDC) when you order.

- Applications:

HVAC Testing & Balancing

IAQ Investigations

Industrial Hygiene Ventilation Verification

Filter Face Air Velocity Measurement
