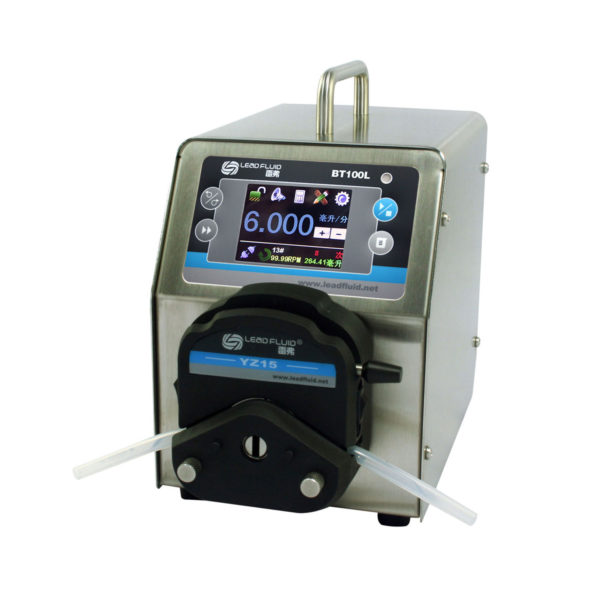

Leadfluid BT100L 지능형 유동 연동 펌프 (0.00011-720mL/min, 4CH)

  • 생산업체: leadfluid
    Model: BT100L
    출처: China
    보증: 12 month
    • 견적요구 견적요구
  • 연락처
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Specifications

Flow range: 0.00011-720 mL/min

Speed range: 0.1-150 rpm

Speed resolution: 0.1 rpm

Speed accuracy: 0.2%

Power supply: AC 220V ± 10% 50/60Hz; AC 110 ± 10% 50Hz/60Hz

Power consumption: < 40W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: Temperature 0-40°C; Relative humidity < 80%

IP grade: IP31

Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)

Weight: 4.8 kg (10.6 lbs)

Details

BT100L Suitable Pump Heads and Tubing, Flow Parameters

Drive typePump headsChTubing size (mm)Flow rate per channel (mL/min)
BT100L
(304SS case)
DG6-1 (6rollers)1Wall:0.8-1, ID:≤2.40.00016-26
DG10-1 (10rollers)1Wall:0.8-1, ID:≤2.40.00011-20
DG6-2 (6rollers)2Wall:0.8-1, ID:≤2.40.00016-26
DG10-2 (10rollers)2Wall:0.8-1, ID:≤2.40.00011-20
DG6-4 (6rollers)4Wall:0.8-1, ID:≤2.40.00016-26
DG10-4 (10rollers)4Wall:0.8~1, ID:≤2.40.00011-20
DT10-18113# 14# , Wall:0.8-1, ID:≤3.170.0002-82
DT10-28213# 14# , Wall:0.8-1, ID:≤3.170.0002-82
DT10-48413# 14# , Wall:0.8-1, ID:≤3.170.0002-82
YZ15113# 14# 16# 19# 25# 17#0.006-420
YZ25115# 24#0.16-420
2 x YZ15213# 14# 16# 19# 25# 17#0.006-420
2 x YZ25215# 24#0.16-420
YT15113# 14# 16# 19# 25# 17# 18#0.006-570
YT25115# 24# 35# 36#0.16-720
2 x YT15213# 14# 16# 19# 25# 17# 18#0.006-570
2 x YT25215# 24# 35# 36#0.16-720
DT15-14116# 19# 25# 17#0.05-400
DT15-24216# 19# 25# 17#0.05-400
DT15-44416# 19# 25#0.05-260
