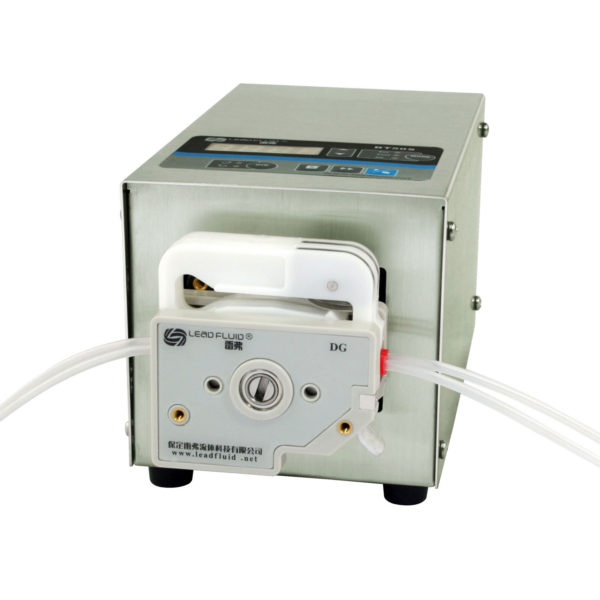

Leadfluid BT50S 마이크로 플로우 가변 속도 연동 펌프 (0.00011-190mL/min, 2CH)

  • 생산업체: leadfluid
    Model: BT50S
    출처: China
    보증: 12 month
    • 견적요구 견적요구
  • 연락처
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Flow range: 0.00011-190 mL/min

Speed accuracy: 0.5%

Speed range: 0.1-50 rpm

Speed resolution: 0.1 rpm

Power supply: AC 220V ± 10%, 50Hz/60Hz (standard); AC 110V ± 10%, 50Hz/60Hz (optional)

Power consumption: < 25W

External logic level control signal: 5V, 12V (standard), 24V (optional). External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)

External communication interface: RS485 MODBUS

Ambient temperature: 0-40 °C

Relative humidity: < 80%

IP grade: IP31

Dimensions (L x W x H): 225 x 132 x 128 mm (8.86 x 5.20 x 5.04 inch)

Weight: 2.7 kg (6.0 lbs)

Details

BT50S Suiable Pump Heads and Tubings, Flow Parameters

Drive typePump headChTubing size (mm)Flow rate per channel (mL/min)
BT50S
(304SS case)
DG10-1 (10 rollers)1Wall:0.8~1, ID:≤3.170.0001-24.5
DG10-2 (10 rollers)2Wall:0.8~1, ID:≤3.170.0001-24.5
DT10-182Wall:0.8~1, ID:≤3.170.0002-41
DT10-282Wall:0.8~1, ID:≤3.170.0002-41
YZ15113# 14# 16# 19# 25# 17#0.006-140
YT15113# 14# 16# 19# 25# 17#1 8#0.006-190
