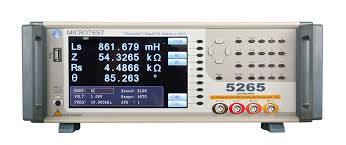

MICROTEST 5265 변압기 시험기 (200KHz)

Frequency:20Hz-200KHz

Turn Ratio Frequency:50Hz ~ 200kHz (10Vac Max.)

Measurement Parameters:

Inductance (L)、Impedance (Z)、Capacitance (C)、Resistance (R)、

Conductance (G)、Susceptance (B)、Admittance (Y)、Alternating Current Resistance (ACR)、

Quality Factor (Q)、Phase angle(Ø)、Direct Current Resistance (DCR)、Leakage Inductance,

Turn Ratio、Balance、Short Circuit

Basic Accuracy:±0.1% (AC  parameter :  1KHz)

Output Impedance: 100Ω

Frequency trimming resolution:5digits

Frequency output accuracy:±0.01%

Point of Test: 20 Points

ESR : Series/Parallel

Mathematical Mode: Absolute/Percentage

Calibration:Open Circuit/ Short CircuitPower Supply: Voltage 98Vac~132Vac or 195Vac~264Vac/47Hz~63Hz

             Frequency 48Hz ~ 62Hz

Display:  800*480  7" TFT LCD

Interface:RS-232, LAN, Handler, USB Host

Flash Memory: 128 sets

Operation: Auto, Manual,Remote Trigger

Environment: Temperature :  10℃ ~ 40°C    Humidity : 20 ~ 90%

Dimension (W*H*D):344x145x343mm

Weight:3Kg

Standard Accessories:Power cord,User manual CD, Transformer Scan Box(F5220),Footswitch ,F423901

Optional Accessories:RS-232 cable,Handler Box
