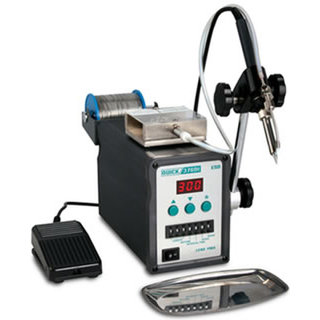

자동 납땜 스테이션 QUICK 376DI (90W/150W, 50°C~600°C)

  • 생산업체: QUICK
    Model: 376DI
    출처: China
    보증: 12 month
    • 견적요구 견적요구
  • 9,136,800 VND
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

  • 품질 보증
  • 공인 보증
  • 집으로 배달
  • 간단하게 거래하기

Manufacturer: QUICK

Model: 376DI

Origin: China

Warranty: 12 months


power: 90W/150W

Voltage: AC 220V

temperature range: 50 ° C ~ 600 ° C

Temperature stability: ±2 ° C (still air without load)

Tip to ground potential: <2mV

Tip to ground resistance: <2Ω

Motor: Stepper motor

Tin speed: About 2.7mm / s ~ 27mm / s (36o / s ~ 360o / s)

Tin length: 0~150mm

Tinning interval: 0~2.7s

Back to tin time: 0 to 0.9 s (about 0 to 25 mm fixed speed: 360o / s)

Tin mode: Auto 1 to 9 / Manual (0)

Tin wire diameter: 0.3, 0.4, 0.5, 0.6, 0.8, 1.0, 1.2 mm

weight: About 3.3kg

Handle model: 20H-90/902A

Chi tiết

Features:

1. The soldering iron adopts the principle of high frequency heating, and the K-type sensor controls the temperature, and the temperature rise and the return temperature are extremely fast.

2. Fully automatic micro-hole breaking to prevent tin explosion during welding.

3. Microcomputer control, push-button temperature adjustment, digital temperature calibration and automatic sleep function.

4. Automatic and manual tin feeding mode is available, and the number of tinning can be set.

5. The tinning speed, tin length and tinning interval are adjustable, and the adjustable tin return function is provided to reduce the waste of solder.

6. Configurable foot tin switch and manual tin switch.

7. Can also be used alone as a lead-free soldering iron.

8. Anti-static design to avoid damage to sensitive electronic parts due to static electricity.
