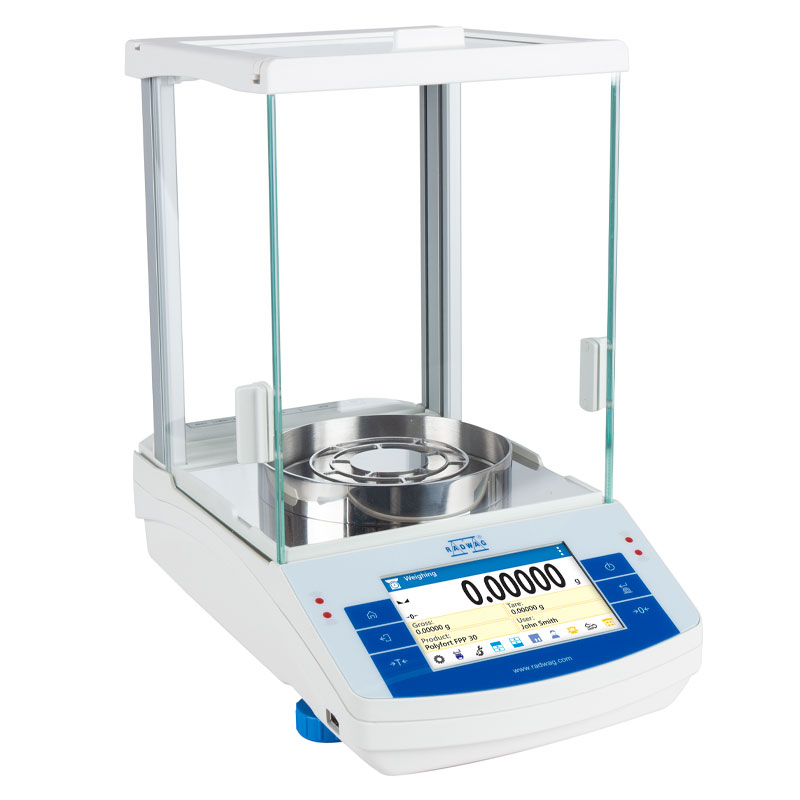

RADWAG AS 82/220.X7 분석 저울 (82/220g, 0.01/0.1 mg)

Metrological parameters

-Maximum capacity [Max]: 82/220g

-Minimum load: -

-Readability [d]: 0.01 / 0.1 mg

-Verification unit [e]: -

-Tare range: -220 g

-Standard repeatability [5% Max]: 0.01 mg

-Standard repeatability [Max]: 0.06 mg

-Standard minimum weight (USP): 20 mg

-Standard minimum weight (U=1%, k=2): 2 mg

-Permissible repeatability [5% Max]: 0.02 mg

-Permissible repeatability [Max]: 0.1 mg

-Linearity: ±0.05/0.2 mg

-Stabilization time: 2s

-Adjustment: internal (automatic)

-OIML Class: -

Physical parameters

-Leveling system: semi-automatic - LevelSENSING

-Display: 7″ graphic colour touchscreen

-Weighing chamber door: manual

-Delivery components: Balance, weighing pan, weighing pan shield, centring ring, bottom cover, power supply, fabric dust cover

-Weighing chamber dimensions: 190×190×222mm

-Weighing pan dimensions: ø90 open-work pan + ø85 (option) mm

- Net weight: 7. 41kg

- Gross weight: 10.5 kg

- Protection class: IP 43

- Database capacity: 7

- Touch-free operation: 2 IR Sensors

Communication interface

-Communication interface: RS232¹, 2×USB-A (interchangeable), USB-B, Wi-Fi®, Ethernet

-Electrical parameters: Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 12 – 15V DC 0.8A max

Power consumption max.: 4 W

Operating temperature: +10 — +40 °C

Ambient conditions monitoring (option): THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Relative humidity: 40% — 80%
