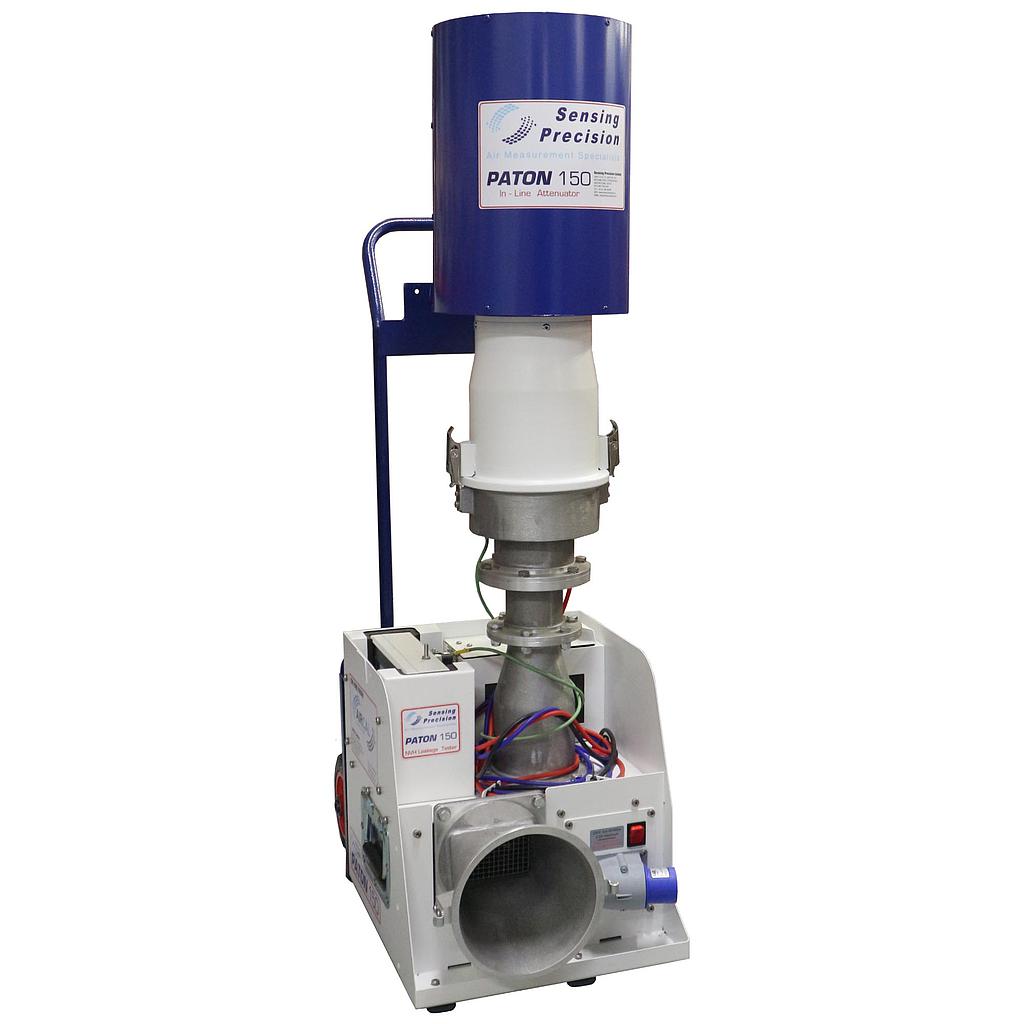

Sensing Precision PATON 150 누설시험기

Volume Flow Measurement 1 l/s to 150 l/s Over Nozzle Ranges

Pressure Measurement Range: ± 2500 Pa

Typical Duty Point: 70 l/s at 2000Pa; 140 l/s at 500Pa

Pressure Measurement Accuracy: ±0.50% of reading ±1 Pa

Leakage Flow Accuracy: ± 2.00% of reading ±1 l/s

Resolution: 1Pa

Sensor Damping: Automatic

Power: 400W

Voltage 240Vac 50/60Hz (or 110Vac 50/60Hz available)

Unit Size: 35W x 46D x 62H (cm)

Unit Weight: 20kg

Carry Case (c/w Accessories) Size: 45W x 45D x 55H (cm)

Carry Case (c/w Accessories) Weight: 10.5kg

Clip on Trolley Size: 38W x 20D x 94H (cm)

Clip on Trolley Weight: 6.7kg

Maximum recommended SD Cardv32GB SDHC Class 1

Optimum Operational Temp: 16 – 24 Celsius

Operational Temperatures: 0 – 50 Celsius

Storage Temperatures: -10 – 60 Celsius
