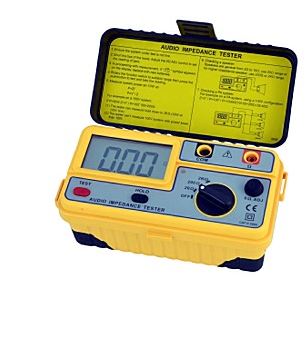

SEW 1106 IM 오디오 임피던스 테스터 (0-2k Ohm)

Measuring ranges: 0-20Ω / 0-200Ω / 0-2kΩ
Test frequency: 1kHz
Accuracy:
20Ω:±2%rdg±2dgt
200Ω/2kΩ : ±2%rdg±2dgt
Low battery:indication “  “ Symbol appears on the display
Data hold indication       “  “ Symbol appears on the display
Dimensions: 175(L) × 85(W) × 75(D)mm
Weight:Approx. 600g
Power source      1.5V (AA) × 8
Safety standard       EN 61010-1 CAT III 200V
EN 61326-1

Details



FEATURES
● Large LCD : 68 × 34mm (2.677" × 1.338").
● True measurement of speaker systems actural impedance at 1kHz.
● Three test ranges allow testing of home theater and commercial
   sound systems.
● Measures transformer impedances.
● Battery operation.
● Low battery indication.
● Data hold function.
● 0Ω adjustment.

  SPECIFICATIONS

  Measuring ranges   0-20Ω / 0-200Ω / 0-2kΩ
  Test frequency   1kHz
  Accuracy   20Ω:±2%rdg±2dgt
  or ±0.1Ω Which is greater
  200Ω/2kΩ : ±2%rdg±2dgt
  Low battery
  indication
    “ Symbol appears on the display
  Data hold indication   “  “ Symbol appears on the display
  Dimensions   175(L) × 85(W) × 75(D)mm
  Weight
  (battery included)
  Approx. 600g
  Power source  1.5V (AA) × 8
  Safety standard   EN 61010-1 CAT III 200V
  EN 61326-1
