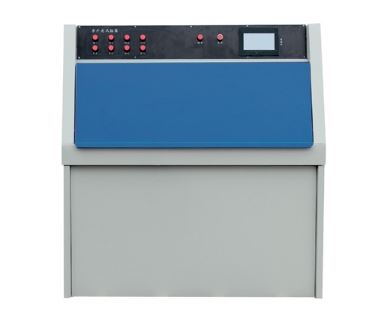

Climatest Symor TA-UV 자외선 내습 시험 챔버 (290Nm-400Nm)

Interior Dimension W*D*H (mm): 1170*450*500

Exterior Dimension W*D*H(mm): 1280*580*1350

Specimen Capacities: 150*75mm:40 pcs; 300*75mm:20pcs(or customized)

Temperature Range: RT+10 °C ~ +70 °C ±2℃

Humidity Range: ≥95% R.H ±2%

Black Panel Temperature: BPT 40 °C ~ 65°C

Lamp Distance (center point-center point): 70mm

Specimen and Lap Distance: 50mm

Humidity Range: ≥95% R.H

UV Wave Length: 290nm-400nm

Irradiation Source: Fluorescent UV lamps (8) - 40 W

Irradiation Control: 0.3 ~ 20 W/㎡（340 nm / 313 nm,Double channel radiometer

Controller: Imported programmable touch screen controller

Exposure: Moisture condensation,UV radiation

Water Spray: Spraying water

Protection: Over temperature,short phase,water shortage,overcurrent,etc.

Supply Voltage: 380V 50/60HZ
