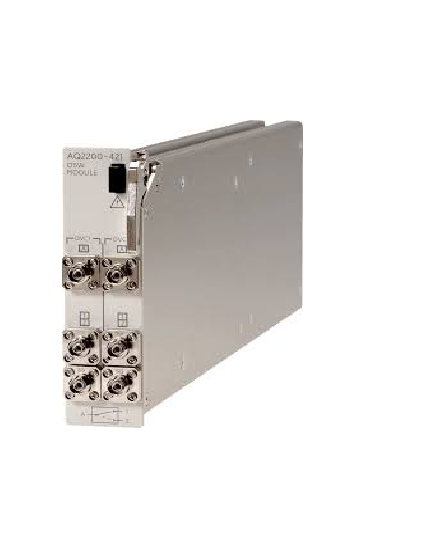

Yokogawa AQ2200-421 광 스위치 모듈 (1x2/2x2)

  • 생산업체: YOKOGAWA
    Model: AQ2200-421
    보증: 12 month
    • 견적요구 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

  • 품질 보증
  • 공인 보증
  • 집으로 배달
  • 간단하게 거래하기

Manufacturer: Yokogawa

Model: AQ2200-421

Warranty: 12 months


Port configuration: 1 × 2, 2 × 2

Number of switch: 2

Wavelength: 850 nm/1310 nm, 1310 nm/1550 nm

Insertion loss:  1.0 dB Repeatability:  ±0.01 dB or less

Crosstalk: 50 dB or more, 50 dB or more

Optical return loss: 45 dB or more, 20 dB or more

Polarization dependence: 0.08 dBp-p or less

Applicable optical fiber: SMF (ITU-T G.652); Select any of MMF (GI 50/125) (ITU-T G651.1) or MMF (GI 62.5/125) (IEC 60793-2)

Optical connector : Select any of FC/PC or SC/PC

Dimensions: Approx. 31(W) × 117(H) × 321.5(D) mm, 1 slot wide (excluding protrusions)

Weight: Approx. 0.7 kg
