Hệ thống kiểm tra kết nối không dây Litepoint IQxel-M

Datasheet

Brochure

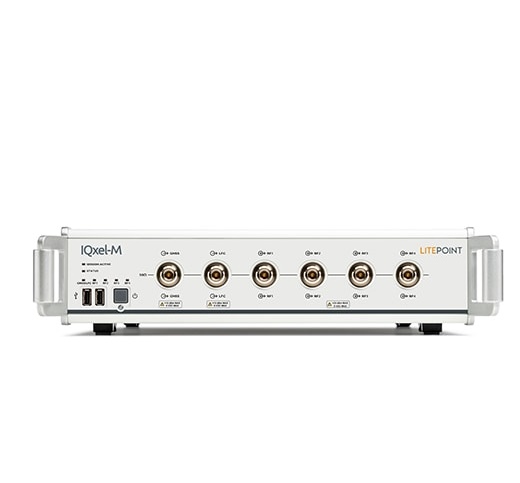

IQxel-M™ is a flexible and comprehensive, one-box test solution for all your WLAN, Bluetooth, IoT and LPWAN connectivity testing needs, including navigation (GPS, GLONASS, Compass/BeiDou) technologies.

Suitable for the lab or manufacturing environment, IQxel-M is ideal for testing mobile or IoT products.

Multi-Device Production Testing

IQxel-M can perform parallel tests on up to four devices through its fully-integrated signal generator and analyzer

With embedded intelligent scheduling capability you can realize dramatic throughput increases compared to single-device systems

Flexibility & Cost Savings from Intelligent Test Methods

Parallel multi-DUT test architecture lets you independently start and stop testing  for each device in the same test station

Re-use existing equipment, preserve your factory setup, and consolidate multiple test stations into one

Maximize Test Throughput with Powerful Signal Analysis

LitePoint’s patented Packet Engine™ enables signal analysis that is fully aligned with the device under test, rather than relying on time-based assumptions

Testing will be completed in the shortest time possible

Measurements will be consistent and repeatable from device to device

Turnkey Chipset-Specific Test Solutions

Backed by a library of hundreds of major wireless chipsets, LitePoint’s IQfact+™ software harnesses the IQxel-M’s power to deliver a total solution that accelerates your time-to-market while minimizing the total cost of testing

Years of partnership with chipset companies means LitePoint products perform the most efficient testing possible and leverage unique, optimized calibration routines that reduce test times

Built for Manufacturing

Rugged and compact 2U-high chassis design fits in a standard 19” rack

Direct cable connections from tester to fixture, automatic configuration and simple fixture calibration free up precious factory floor space and reduce operational expenses

Wireless Technology Options (WLAN, Bluetooth, IoT, LPWAN)

Wi-Fi, 802.11ac

Wi-Fi, 802.11a/b/g/j/n/p

Wi-Fi, 802.11ah

Bluetooth, Classic (1.x, 2.x, 3.0), Low Energy (4.0, 4.1, 4.2)

Bluetooth 5 and Bluetooth 5.1

Zigbee, Z-Wave and Wi-SUN

DECT

LTE

LPWAN, Sigfox / LoRa

Navigation: GPS, GLONASS, Compass

Broadcast: FM

Lab and Manufacturing Test Solution

For manufacturing environments

For products in the product characterization or PCB-level manufacturing lifecycle stages

For 802.11ac-enabled mobile, gaming and IoT devices
