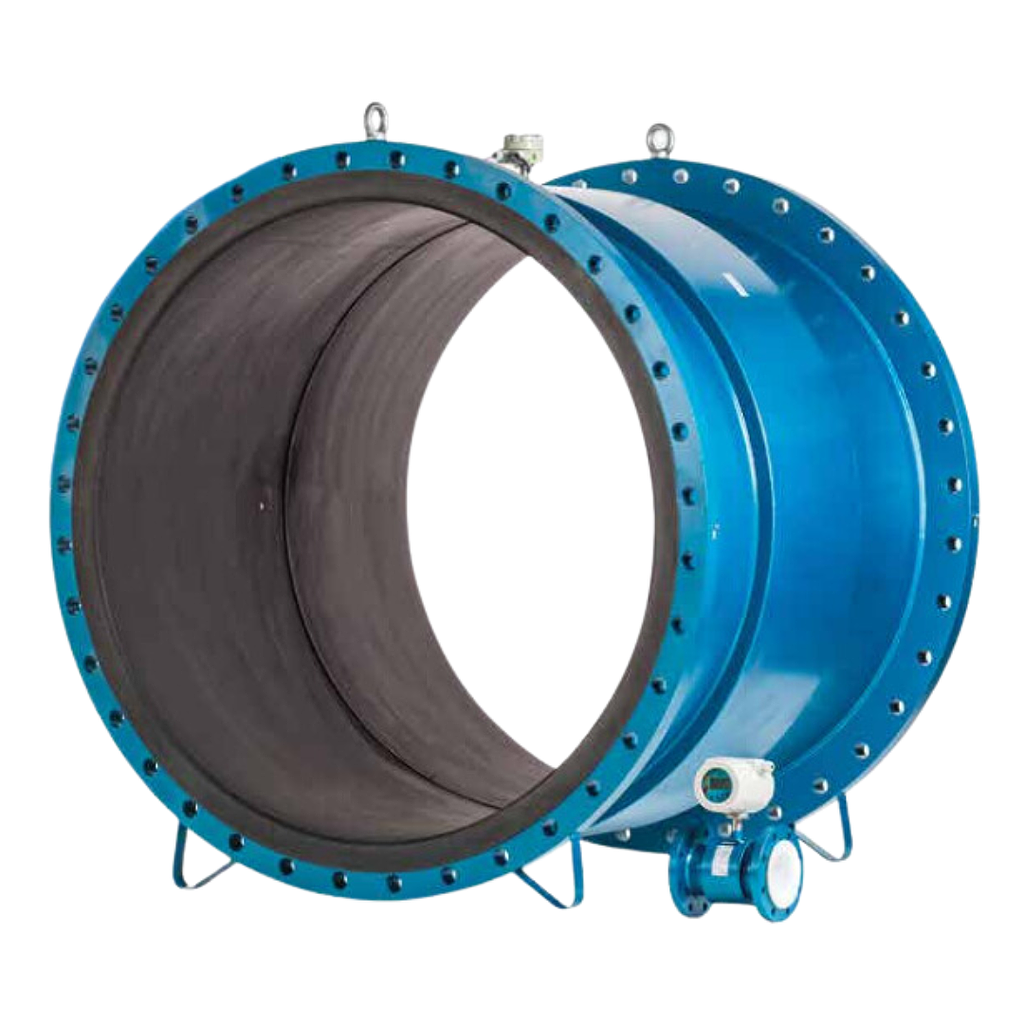

Euromag SENSOR MUT2200EL ເຄື່ອງວັດແທກກະແສໄຟຟ້າ
ຜູ້ຜະລິດ: Euromag Model: SENSOR MUT2200EL - ຕິດຕໍ່ພົວພັນ
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Technical Specifications
Flow tube material: AISI 304 (std), AISI 316
Flanges material: Carbon steel painted (std), AISI 304, AISI 316
Electrodes material: Hastelloy C (std), Hastelloy B, Titanium, Tantalio, Platinum
Internal lining and liquid temperature:
Internal lining: PTFE / Liquid temperature: Standard -40 /+130°C (up to +180° on request)
Internal lining: Ebonite / Liquid temperature:-40°C / +80°C
Available sizes (mm): 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 2000
Flange standards available: EN1092-1, ANSI 150, ANSI 300, ANSI 600, ANSI 900, DIN 2501, BS 4504, AS 2129 (TABLE D - E - F), AS 4087, ISO 7005-1, KS 10K
Protection Degree: IP68 1,5 m continuous immersion (EN 60529)
Compatible converters: MC608 A/B/R/P/I, MC406
Electrical connections: Cable glands M20 x 1.5 + terminal block + sealing resin
