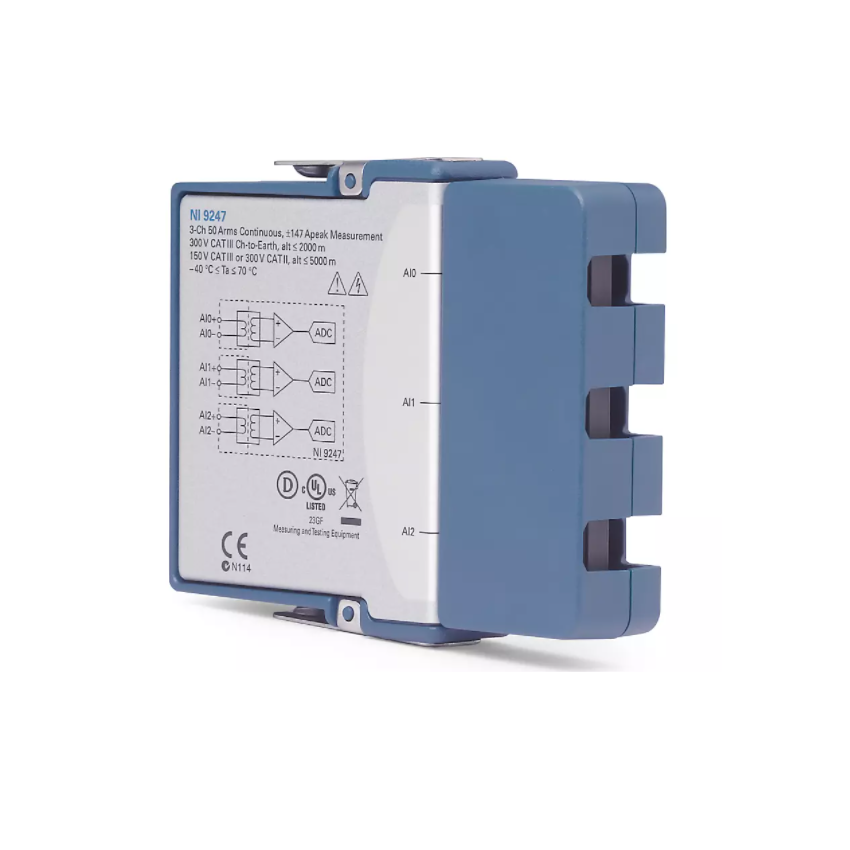

C Series Current Input Module NI NI-9247 (Ring Terminals (qty 3), 50 kS/s/ch, 0~50 Arms, 24-Bit)
Hãng sản xuất: NI Model: NI-9247 P/N: 783589-01 - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0345.689.536
Maximum Number of Single-Ended Analog Input Channels: 0
Maximum Number of Differential Analog Input Channels: 3
Maximum Sample Rate: 50 kS/s/ch
Analog Input Resolution: 24 bits
Measure Current: 0 Arms to 50 Arms
Analog Input Isolation: 480 Vrms Ch-Ch Isolation
Front Connection Type: Ring Terminals (qty 3)
Conformal Coated: No
Enclosed: Yes
Kit Contents
• NI 9247
• High Voltage Backshell
• NI 9247 Getting Started Guide
Recommended Accessories
• Ring Lugs (Quantity: 6)
Provides current measurements for CompactDAQ and CompactRIO systems.
The C Series Current Input Module features programmable input ranges, variable connectivity options, and built-in noise rejection. You can also choose from options with built-in anti-aliasing filters or high-channel density to reduce the number of modules needed. The C Series Current Input Module supports safety features, certifications, input ranges, overvoltage ranges, and connectivity for applications such as power quality monitoring and metering, utility pole-mounted smart switches, utility pole-mounted smart grid reclosers, substation merging units, industrial machine measurements, health monitoring, predictive maintenance and prognostics, and phasor measurement units (PMUs). The C Series Current Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
