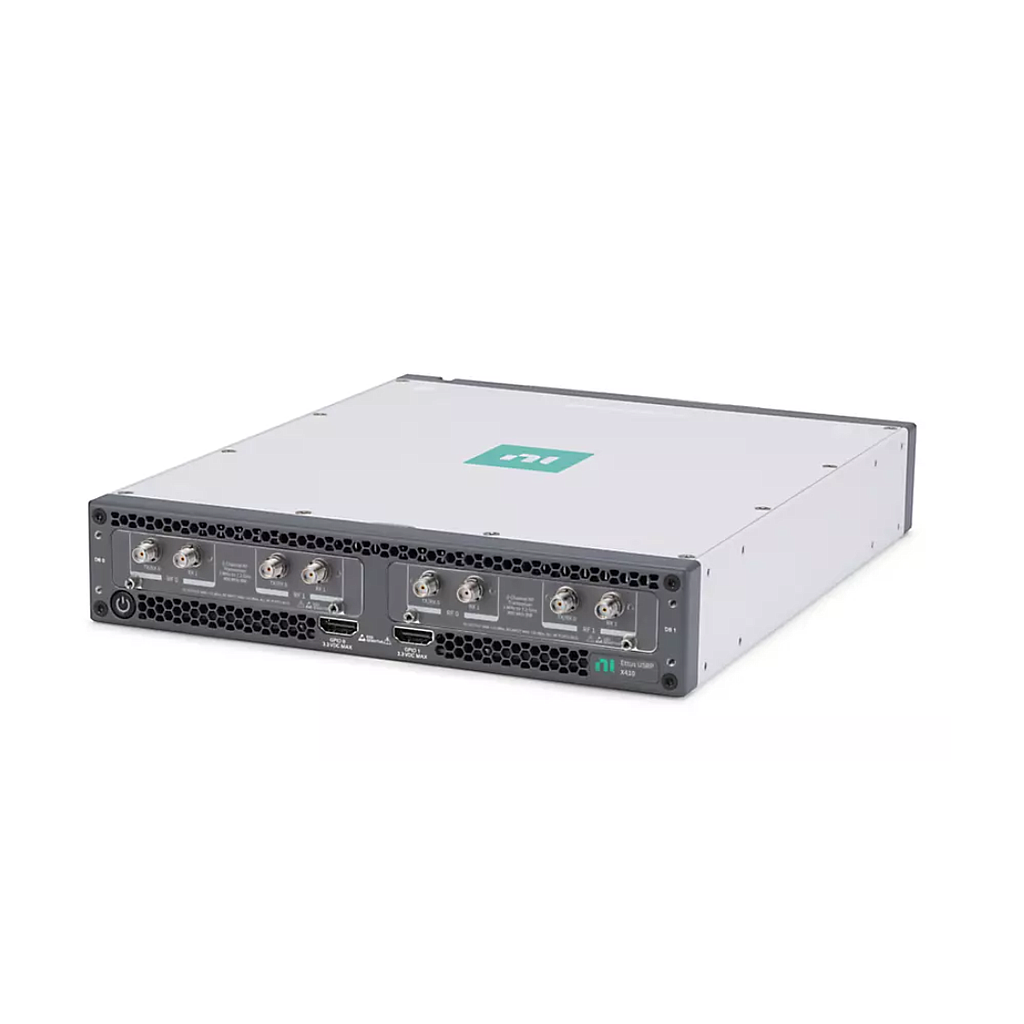

USRP Software Defined Radio Device NI Ettus USRP X410 (1 MHz ~ 7.2 GHz, 4-Channel)
Hãng sản xuất: NI Model: Ettus USRP X410 P/N: 787272-01 - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0345.689.536
RF Frequency Range: 1 MHz to 7.2 GHz
RF Transceiver Instantaneous Bandwidth: 400 MHz
FPGA: Zynq US+ RFSoC (ZU28DR)
Number of Input Channels: 4
umber of Output Channels: 4
Bus Connector: Ethernet PCI Express
GPSDO: Yes
Provides a software-defined RF architecture to rapidly design, prototype, and deploy wireless systems with custom signal processing.
The USRP Software Defined Radio Device is a reconfigurable RF device that includes a combination of host-based processors, FPGAs, and RF front ends. The USRP Software Defined Radio Device include options that range from lower cost options with fixed FPGA personalities to high-end radios with a large, open FPGAs and wide instantaneous bandwidth. These devices can be used for applications such as multiple input, multiple output (MIMO) and LTE/WiFi testbeds, SIGINT, and radar systems.
