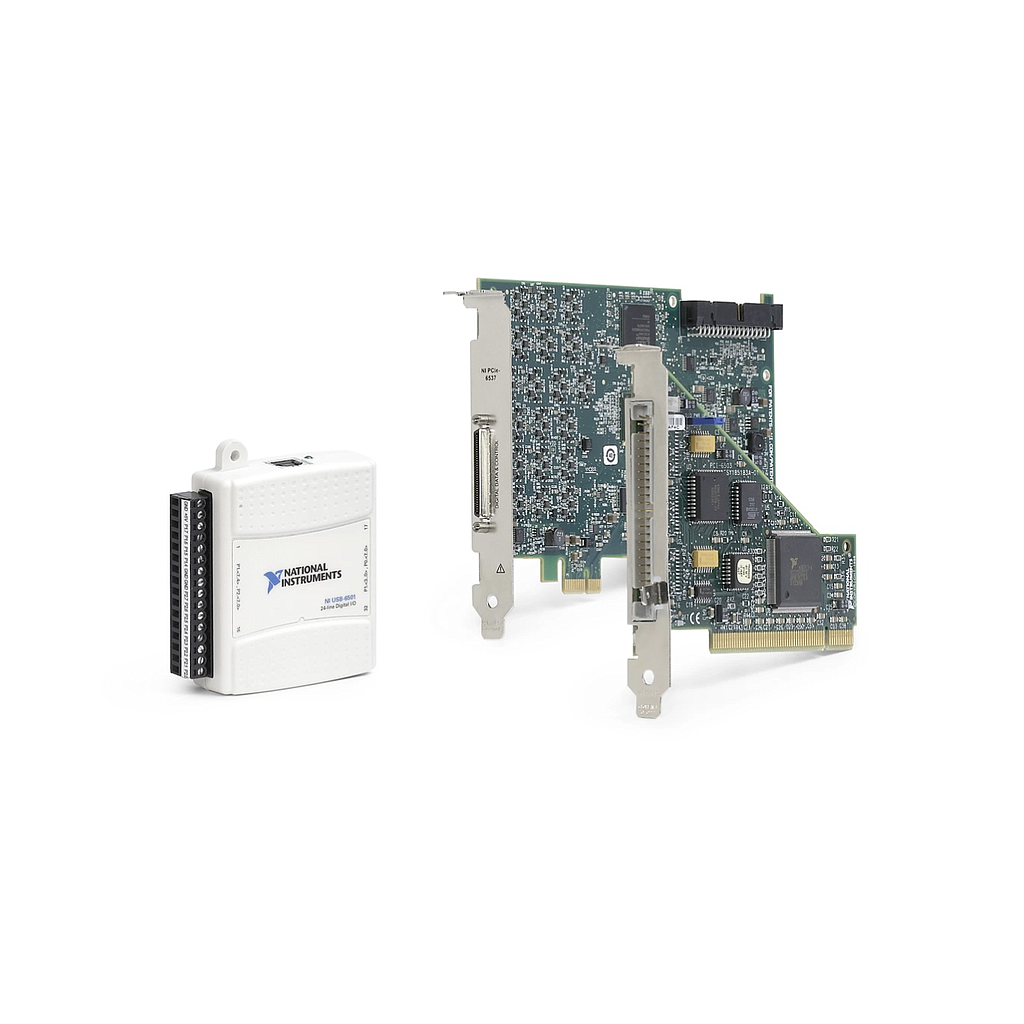

Digital I/O Device NI PCI-6519 (125 mA, -30V ~ 30V)
Hãng sản xuất: NI Model: PCI-6519 P/N: 779085-01 - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0345.689.536
Bus Connector: PCI
Number of Bidirectional Digital Channels: 0
Single-Ended Digital I/O Channel Current Drive: 125 mA
Number of Digital Input Only Channels: 16
Digital Input Voltage Range: -30 V to 30 V
Number of Digital Output Only Channels: 16
Output Voltage Range: -30 V to 30 V
Maximum Clock Rate: —
Provides digital input and output capabilities for computer-based systems.
The Digital I/O Device supports channel, current, and voltage options to help you automate applications. This module features programmable input filters to remove chatter, noise, glitches, and spikes on inputs, and these filters also provide debouncing for digital switches and relays. You can use the module to perform safe operation when connected to pumps, motors, and other industrial actuators or machinery using the included power-up states. The module also provides a fail-safe mechanism that monitors for computer or application crashes and place the system in a state to ensure safe recovery. Additionally, some models include high-voltage, high-current, and isolation options to ensure the product can work safely in many environments.The Digital I/O Device includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
