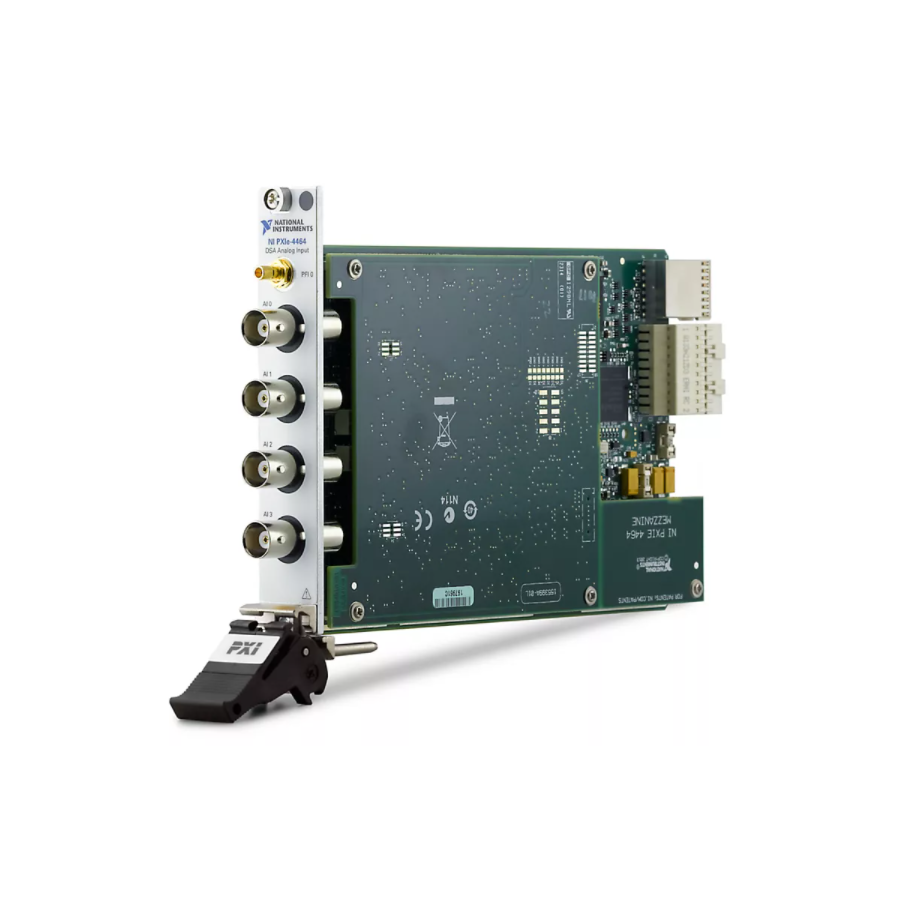

PXI Sound and Vibration Module NI PXIe-4464 (PXIe, 4-channel, SMB BNC (qty 4), 204.8 kS/s)
Hãng sản xuất: NI Model: PXIe-4464 P/N: 783087-01 - Liên hệ
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0345.689.536
DSA Dynamic Range: 119
Maximum Sample Rate: 204.8 kS/s
Bus Connector: PXIe
Maximum Number of Differential Analog Input Channels: 4
Analog Input Coupling: AC/DC
Number of Analog Output Channels: —
Highpass Filter Cut-Off Frequency: 0.72 Hz
Number of Gain Settings: 6
Front Connection Type: SMB BNC (qty 4)
Provides dynamic signal generation and acquisition in sound and vibration applications for PXI systems.
The PXI Sound and Vibration Module is designed specifically for applications like audio test and measurement, noise and vibration diagnostics, machine condition monitoring, automotive test, noise, vibration, and harshness (NVH) analysis, and laboratory research. The module provides software-configurable AC/DC coupling, antialiasing filters, and IEPE conditioning to ensure precision measurements with microphones, accelerometers, and other transducers with large dynamic ranges.The PXI Sound and Vibration Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
