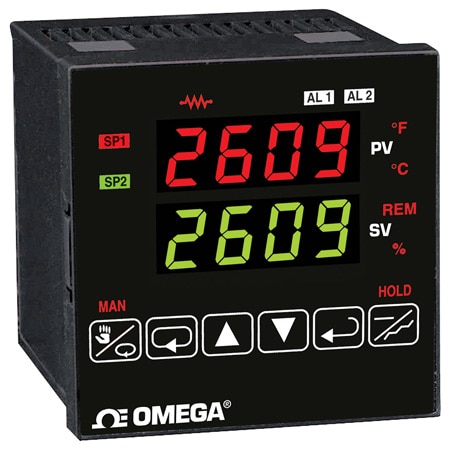

Bộ điều khiển Nhiệt độ/Quy trình Ramp/Soak 1/4 DIN với Logic Mờ OMEGA CN72133-RSP1 (4 Digit LED)

Weight: 369 g

Accuracy: ± 0.25 %

Input Type: Thermocouple, RTD, mA, mV, Voltage

Form factor: 1/4 DIN

Display Size: 6.35 mm (.25 in)

Display Type: 4 Digit LED

Accuracy Note: ± 0.25% of span, ± 1 least significant digit

Output Detail: Dual output 2 relay/DC Pulse with alarm, Remote setpoint,0 to 20 mA;Relay: SPDT, 10 A @ 240 Vac Resistive: 1⁄2 hp @ 120 Vac, 1⁄3 hp @ 240 Vac Alarm Relay: SPST, 3 A @ 240 Vac resistive Proportional Current (Isolated): 0 to 20 mAdc, scalable into 600 Ω maximum SSR: 2.5 A @ 240 Vac @ 25°C (77°F); derates to 1.25 A @ 55°C (130°F) DC Pulse (Isolated): 15 Vdc @ 20 mA

Output Signal: None

Ramp and Soak: 16 ramp/soak Programs

Sampling Rate: 1 Hz (1 update/second)

Control Output: 2 SPDT Relay, Alarm

Supply Voltage: 100 to 240 Vac

Impedance Input: Thermocouple: 3 MΩ minimum; Voltage: 5000; Current: 10; RTD Current: 200 μA maximum

Measuring Range: Type K: -129 to 1371°C Type J: -73 to 871°C Type T: -212 to 398°C Type E: -73 to 982°C Type N: -73 to 1300°C Type R: -17 to 1760°C Type S: -17 to 1760°C Type B: 24 to 1820°C Type L (J DIN): -73 to 871°C Type C: -17 to 2320°C Pt100 RTD (0.00385 and 0.00392): -200 to 875°C RTD, 120 Ω nickel (0.00628): -80 to 320°C 0 to 20 mA, 4 to 20 mA: -1999 to 9999 0 to 10 Vdc,-10 to 10 Vdc, -10 to 10 mVdc: -1999 to 9999

Remote Setpoint: Current

Measurement Type: Current, Temperature, Voltage

Number of Inputs: 1

Display Type Note: Two 4-digit, 7-segment, 6.35 mm H (0.25") LEDs

Enclosure Ratings: IP65, NEMA Type 4X

Supply Power Note: 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz Single Phase: 132 to 240 Vdc, nominal, 10 to 20%

Supply Power Type: AC

Number of Control Outputs: 3

Operating Temperature, Max: 55 °C

Operating Temperature, Min: -10 °C
